Product description
HPLC-Sets for solvent supply of one HPLC containing for laboratory flasks GL 45 / 1000 ml made of borosilicate glass, suitable b.safe Capas GL 45, Air Valves with service life indicator, Fittings for capillaries with OD 1,6 mm / 2.2 mm / 3.2 mm and Blind Fittings to close unused connections. Version and scope of delivery of each set as per below chart.

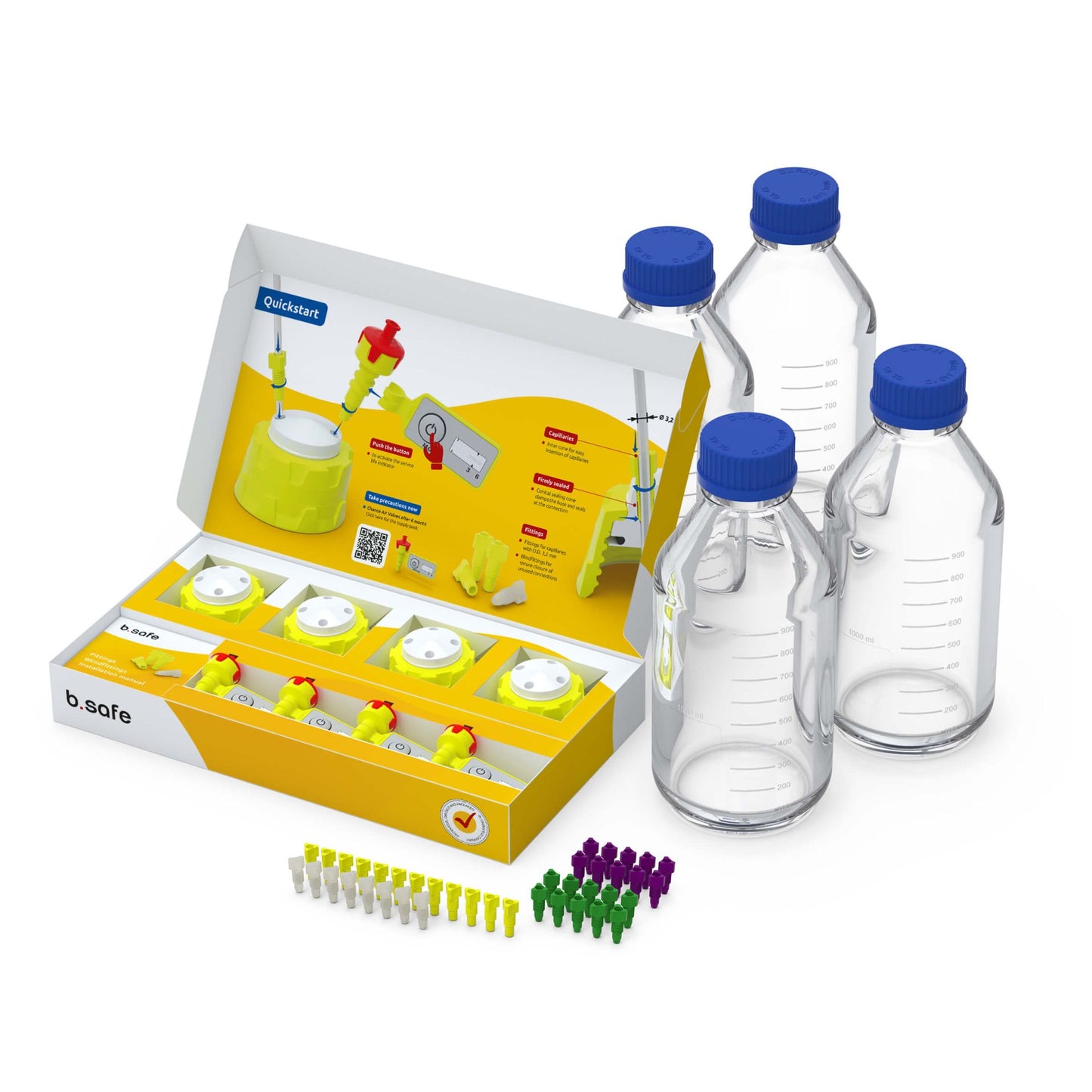

Scope of delivery Starter Set Premium C
4 x b.safe Cap GL45 with 3 capillary connections
4 x Air Valves with service life indicator
12 x Fittings for tubing O. D. 3,2 mm (yellow)
10 x Fittings for tubing O. D. 1,6 mm (green)
10 x Fittings for tubing O. D. 2,2 mm (purple)
8 x Blind fitting (milky-white)
4 x b.safe Laboratory Flask GL45 / 1000 ml
Applications
Perfectly matched system for extraction of eluents. Tubing can be inserted onto the ground of the bottle by means of the b.safe Fittings made of PFA. The conical seal cone clamps the tubing and seals the connection safely. The b.safe Air Valve is especially adapted to the flow rate in HPLC. The integrated non-return valve avoids evaporation of solvents and lets flow ambient air into the bottle in case of vacuum. The upstream porous PTFE membrane restrains pollutant particles and other contaminations from outside. The 6 months service life of the Air Valve can be easily monitored through either activating the display on the service life indicator and exchanging the valve in case of completely red colouring or documentation of the exchange date by hand and clip on the service life indicator at the valve.
