TLC / HPTLC plates and sheets

Use our TLC and HPTLC glass plates, aluminum and polyester sheets for your rapid and inexpensive thin layer chromatography methods. We offer various reliable coatings for normal phase and reversed phase. We also gladly offer you samples to test the right product for your applications in advance.

MACHEREY‑NAGEL – TLC for more than 5 decades

We offer ready-to-use layers for TLC and HPTLC

  • Comprehensive range of plate sizes, surface chemistries and backings
  • Pre-coated plates ready for immediate use
  • Homogeneous, smooth and well adhering layers
  • Available with UV indicator or non-impregnated
  • Consistent high quality from batch-to-batch and from plate-to-plate

Standard analytical TLC plates and sheets

Thin layer chromatography can be used for both qualitative and quantitative analysis. Standard analytical TLC plates typically have adsorbent layers that are nominally between 0.20–0.25 mm in thickness. Particle size is about 5–17 µm.

Preparative TLC plates

Preparative TLC is used for purification and isolation of analytes from impurities. Preparative TLC layers (≥ 0.5 mm) are only on glass plates available. For 2 mm preparative layers a slightly coarser material is used.

Good to know - HPTLC

MN defines HPTLC products as follows

At least one of the following criteria must be fulfilled

  • Layers with particle size 2–10 µm
  • Layers with prefix "Nano"
  • All modified layers

Narrow fractionation of the silica particles allows

  • Sharper separations
  • Shorter developing times
  • Shorter migration distances
  • Smaller samples needed
  • Increased detection sensitivity (compared to TLC)
test image

TLC / HPTLC backings

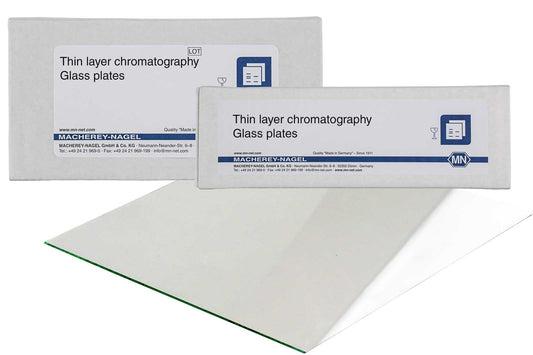

Glass

Glass plates are robust, heat proof and chemically resistant to all common mobile phases and visualization reagents.

  • Thickness (approx.): 1.3 mm
  • Weight and storage requirements: high
  • Torsional strength: ideal
  • Temperature stability: high
  • Susceptible to breakage: yes
  • Can be cut with scissors: no
  • Chemical resistance against solvents: high
  • Chemical resistance against mineral acids and conc. ammonia: high
  • Suitability for aqueous detection reagents: depends on phases (layer)

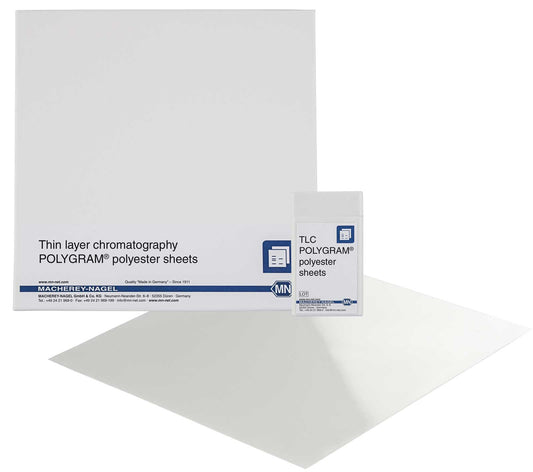

Polyester – POLYGRAM sheets

Polyester sheets are easy to handle, lightweight and flexible. Can be cut with scissors. Developed POLYGRAM sheets can also be stored for documentation in laboratory notebooks.

  • Thickness (approx.): 0.2 mm
  • Weight and storage requirements: low
  • Torsional strength: low
  • Temperature stability: max. 185 °C
  • Susceptible to breakage: no
  • Can be cut with scissors: yes
  • Chemical resistance against solvents: high
  • Chemical resistance against mineral acids and conc. ammonia: high
  • Suitability for aqueous detection reagents: good

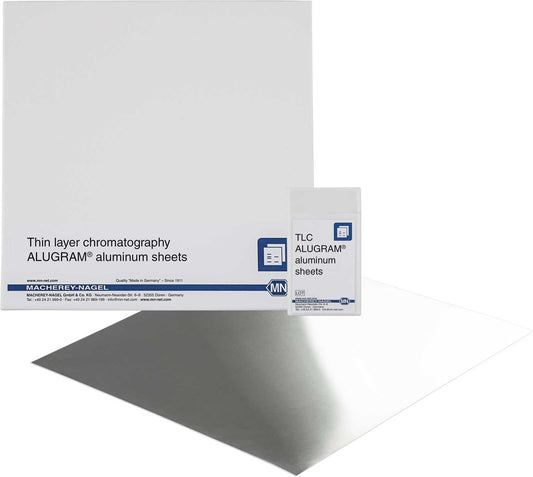

Aluminum – ALUGRAM (Xtra) sheets

Aluminum sheets are easy to handle, lightweight and flexible. High performance silica on ALUGRAM Xtra sheets provides outstanding wettability for precise colorization results, even with 100 % aqueous detection reagents. Moreover ALUGRAM Xtra sheets are easy to cut with scissors. No flaking of silica occurs!

  • Thickness (approx.): 0.15 mm
  • Weight and storage requirements: low
  • Torsional strength: relatively high
  • Temperature stability: high
  • Susceptible to breakage: no
  • Can be cut with scissors: yes
  • Chemical resistance against solvents: high
  • Chemical resistance against mineral acids and conc. ammonia: low
  • Suitability for aqueous detection reagents: ALUGRAM: low to moderate, ALUGRAM Xtra: moderate to high

Most commonly used silica gel layers

SIL G

  • Standard layer (soft)
  • Thicker layers for preparative TLC (PLC) on glass plates
  • Available on glass plates, polyester and aluminum sheets

ADAMANT

  • Outstanding hardness and abrasion resistance
  • Excellent separation efficiency
  • Low-noise background of the layer
  • Available on glass plates

SIL HD

  • Hard layer with good abrasion resistance
  • High luminosity
  • Brilliant staining properties (e.g., with potassium permanganate - KMnO₄)
  • Excellent separation efficiency
  • Good wettability for precise colorization results – even with 100 % aqueous detection reagents
  • Low-noise background of the layer
  • Available on glass plates
Indicators and binder systems
  • Indicators: manganese activated zinc silicate with green fluorescence for short-wave UV (254 nm); special inorganic fluorescent pigment with blue fluorescence for long-wave UV (366 nm)
  • Binders: highly polymeric products, which are stable in almost all organic solvents and resistant towards aggressive visualization reagents. The binders are also contain gypsum (calcium sulfate hemi- or dihydrate). The binder composition is proprietary.
