Flash cartridges

Often glass columns have manually been packed with silica gel based adsorbents. Column packing is time‑consuming. We speed up the whole purification process by ready‑to‑use prepacked polypropylene cartridges with high pressure stability. Our CHROMABOND Flash cartridges can be used in all common automated flash systems.

Flash cartridges – CHROMABOND Flash for preparative LC

CHROMABOND Flash cartridges for preparative purification from one of the leading companies in silica and TLC business.

High quality standard
  • All flash cartridges and adsorbents undergo comprehensive during- and after-production quality assurance measures to ensure that the products comply with the specification.
  • Cartridge material is made of pharmaceutical and food grade polypropylene

CHROMABOND Flash cartridges

MACHEREY-NAGEL polypropylene cartridges designed for

  • Isco Companion and other Teledyne Isco CombiFlash systems
  • Biotage Isolera, Biotage FlashMaster
  • Yamazen Smart Flash, Interchim puriFlash systems
  • Or as stand-alone version for all pump / detector combinations, e.g., from Biotage, Büchi

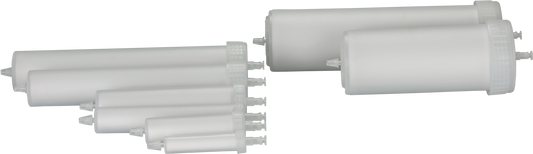

CHROMABOND Flash RS

Enhanced flexibility and reliable upscaling

  • 4 g up to 3000 g adsorbent-packed cartridges for convenient operation and reliable upscaling
  • Spherical and irregular silica available
  • Robust hardware with high pressure stability of up to 21 bar

Column connection

  • Cartridges up to RS 330: female Luer lock inlet and male Luer outlet
  • Cartridges RS 800, RS 1600 and RS 3000: Maxi Luers

Adsorbents

  • SiOH 40–63 μm
  • SiOH 15–40 μm
  • C₁₈ ec 40–63 μm
  • C₁₈ ec 15–40 μm
  • SPHERE SiOH 25 μm*
  • SPHERE SiOH 15 μm*
  • Other adsorbents (if feasible) on request

*spherical material for highest performance in flash chromatography - exclusively in CHROMABOND RS cartridges

CHROMABOND Flash BT

  • 4 g to 330 g columns packed with adsorbents for convenient use and upscaling
  • Partial fillings are possible
  • Lid is removable
  • Robust hardware with high pressure stability of up to 21 bar

Column connection

  • Female Luer lock inlet and male Luer lock outlet

Adsorbents

  • SiOH 40–63 μm
  • SiOH 15–40 μm
  • C₁₈ ec 40–63 μm
  • C₁₈ ec 15–40 μm
  • Other adsorbents (if feasible) on request

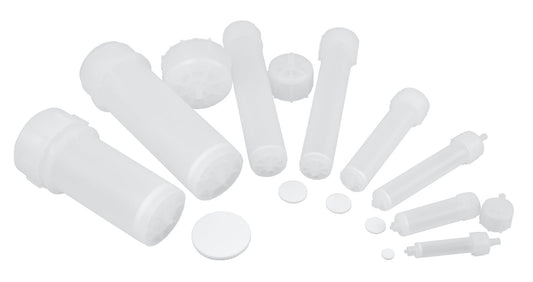

CHROMABOND Flash DL – Empty flash cartridges

  • Suitable as solid injection system
  • For individual self-filling and packing of flash cartridges
  • Each cartridge comes with 3 filter elements: one already inserted, two more filters aside.

Column connection

  • Female Luer lock inlet and male Luer lock outlet

Adsorbents

  • Empty, without adsorbents

Classic flash glass columns

  • Cost-effective low-tech method for the synthesis laboratory
  • Suitable for the separation of substance quantities up to the gram scale
  • No great equipment effort required
  • Glass columns of different sizes available

We offer flash glass columns as empty columns.

Note: Generally, these columns are filled up to a height of 15 cm, the working pressure is between 1.5 and 2 bar. Silica gel 60 with 40–63 μm particle size is most commonly used, but you can also use other products from our LC adsorbents range as well as our POLYGOPREP silica gels.

Good to know
  • Flash glass columns are also available as flash chromatography kit: each kit contain one glass column, one eluent reservoir, silica gel 60 (packing material) and required accessories.
  • If particle sizes < 25 μm are used in flash glass columns it is recommended to work with mobile phases of very low viscosity only, otherwise the back pressure will be too high.
