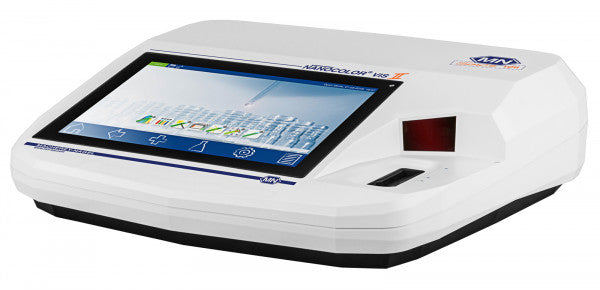

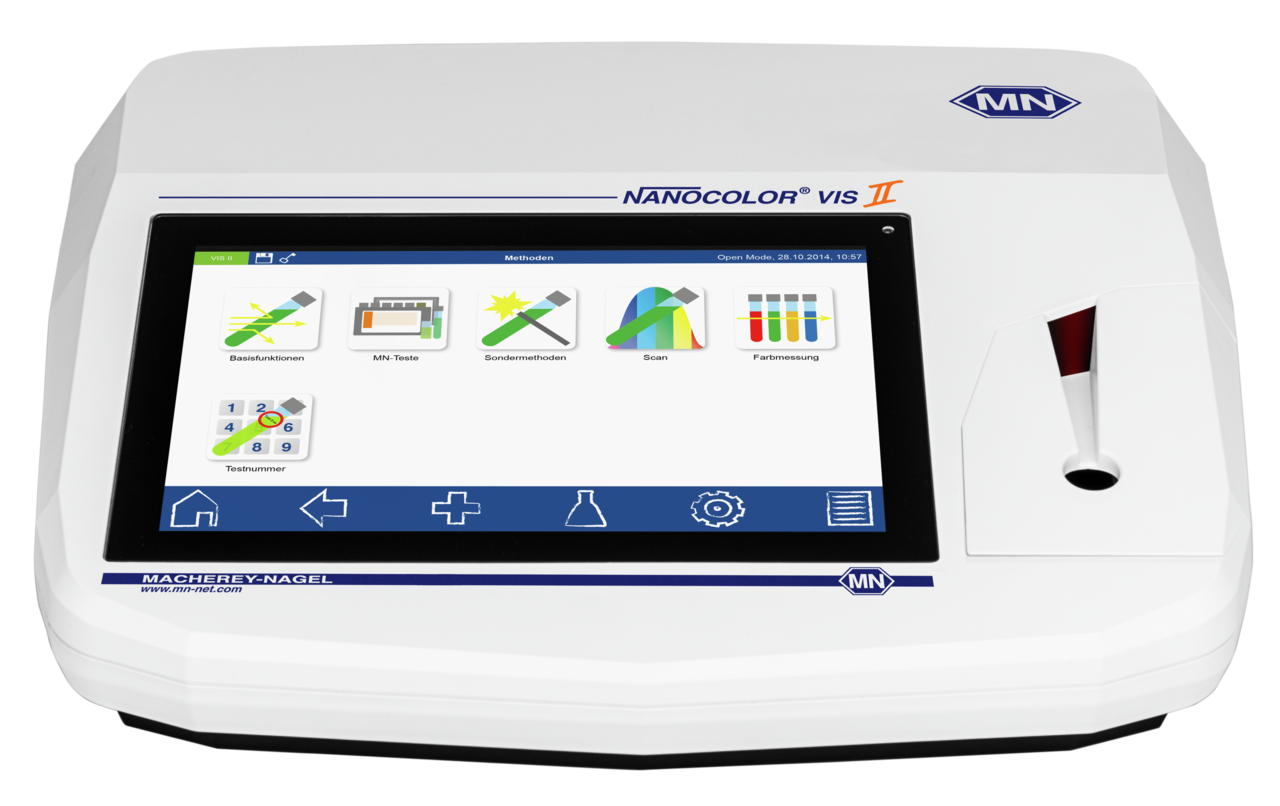

NANOCOLOR

Spectrophotometer with reference detector technology (RDT)

Halogen lamp

Monochromator

320–1100 nm

± 1 nm

0.1 nm

<0.5 nm

Automatic

Automatic, barcode, manual

1 complete scan in less than 1 min

< 4 nm

± 3.0 A in wavelength range 340–900 nm

0.005 A at 0.0–0.5 A; 1 % at 0.5–2.0 A

< 0.5 % at ≤ 2 A; ≤ 1 % at > 2 A

< 0.1 %

More than 200 preprogrammed tests and special methods, 100 optionally programmable methods, absorbance, transmission, factor, kinetics, 2-point calibration, scan, nephelometric turbidity measurement

NANOCOLOR tube tests and standard tests

Nephelometric turbidity measurement at 860 nm (based on ISO 7027), 0.1–1000 NTU

Round tubes 16 mm OD, rectangular cuvettes 10 mm, 20 mm, 40 mm, 50 mm

Insensitive to external light, fast measurements without cuvette slot cover

16 GB Micro SDHC card, 5000 measured data sets, 100 spectra and color measurements, GLP-conform

10.1″ LED backlit HD display, anti-reflective cover glass with projected capacitive touch screen (PCAP)

With NANOCONTROL NANOCHECK 2.0

Barcode technology, icon-based menu guidance, touch screen

DE / EN / FR / ES / PT / PL / HU / NL / CZ / RO / IT

LAN, 2 x USB (host), 1 x USB (function) and RS232

Free via USB stick

10–40 °C, max. 80 % relative humidity (non-condensing)

Input 110–240 V AC, Output 12 V 3A DC

360 x 400 x 110 mm

4 kg

2 Years

Yes

Photometer, manual (quick start guide), touch pen, protective covering, power cable, USB cable, USB stick, calibration cuvette, certificate and cleaning cloth

No
