Brand
NANOCOLOR
Type
Spectrophotometer with reference detector technology (RDT)
Light source
Halogen lamp (visible range), Deuterium lamp (UV range)
Optical system
Monochromator
Wavelength
190–1100 nm
Wavelength accuracy
± 1 nm
Wavelength resolution
0.1 nm
Wavelength reproducibility
<0.5 nm
Wavelength calibration
Automatic
Wavelength selection
Automatic, barcode, manual
Scan speed
1 complete scan in less than 1 min
Spectral bandwidth
<2 nm
Photometric range
± 3.0 A in wavelength range 200–900 nm
Photometric accuracy
0.005 A at 0.0–0.5 A; 1 % at 0.5–2.0 A
Photometric linearity
> 0.5 % at ≤ 2 A; ≤ 1 % at < 2 A
Stray light
<0.05 %
Measuring modes
More than 200 preprogrammed tests and special methods, 100 optionally programmable methods, absorbance, transmission, factor, kinetics, 2-point calibration, scan, nephelometric turbidity measurement
Preprogrammed tests
NANOCOLOR tube tests and standard tests
Turbidity measurement
Nephelometric turbidity measurement at 860 nm (based on ISO 7027), 0.1–1000 NTU
Cuvette slot
Nephelometric turbidity measurement at 860 nm (based on ISO 7027), 0.1–1000 NTU
External light
Insensitive to external light, fast measurements without cuvette slot cover
Data memory
16 GB Micro SDHC card, 5000 measured data sets, 100 spectra and color measurements, GLP-conform
Display
10.1″ LED backlit HD display, anti-reflective cover glass with projected capacitive touch screen (PCAP)
Internal quality control
With NANOCONTROL NANOCHECK 2.0
Operation
Barcode technology, icon-based menu guidance, touch screen
Language
DE / EN / FR / ES / PT / PL / HU / NL / CZ / RO / IT
Interfaces
LAN, 2 x USB (host), 1 x USB (function) and RS232
Update
Free via USB stick
Operating range
10–40 °C, max. 80 % relative humidity (non-condensing)
Power supply
110–240 V AC, 50 / 60 Hz
Dimensions
400 x 440 x 170 mm
Weight
6.5 kg
Warranty
2 Years
CE certified
Yes
Scope of delivery
Photometer, manual (quick start guide), touch pen, protective covering, power cable, USB cable, USB stick, calibration cuvette, certificate and cleaning cloth
Hazardous material
No
-
Download Instruction Manual (EN)
SKU: 919600.1

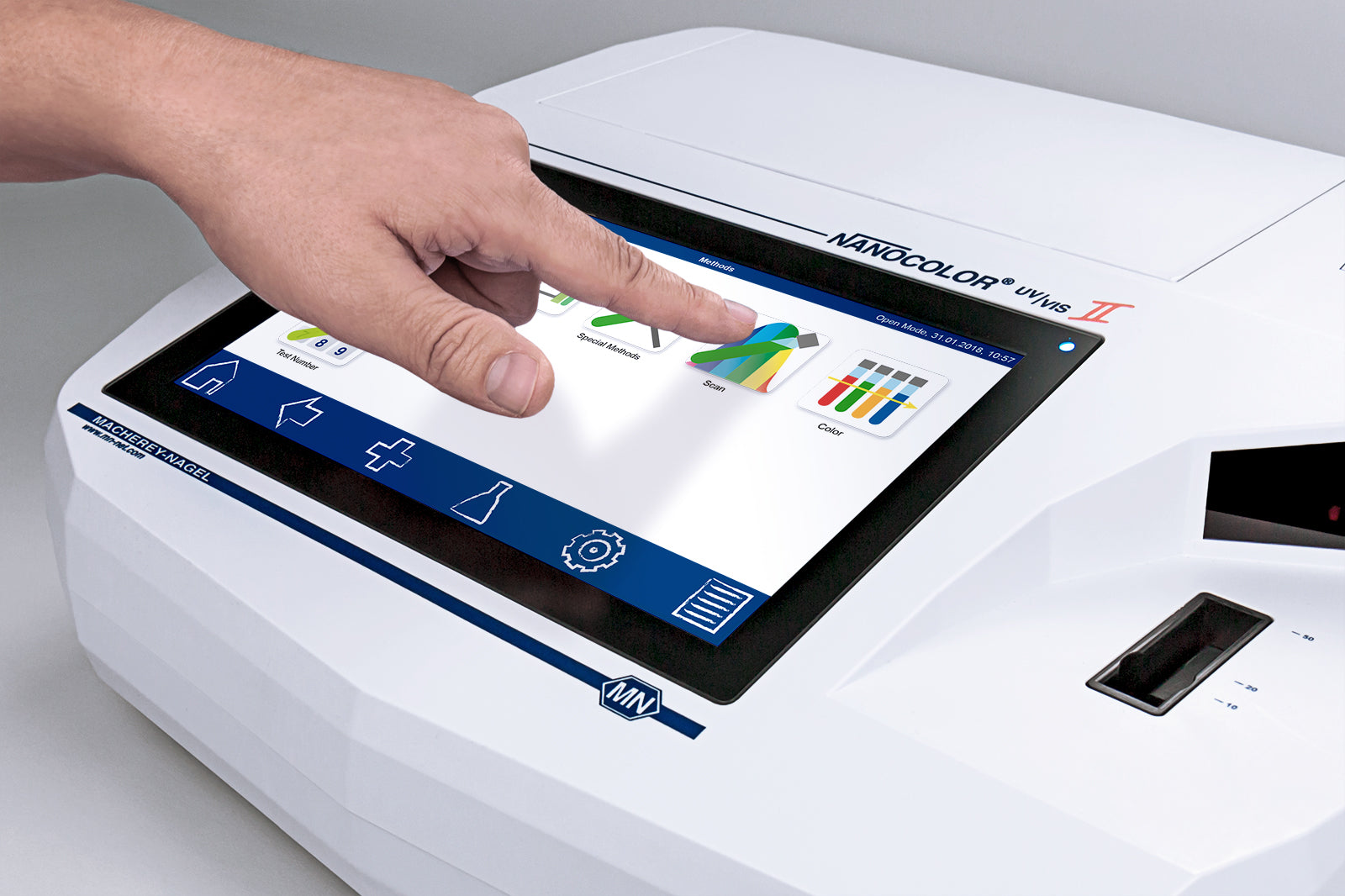

The spectrophotometer NANOCOLOR UV/VIS II is a high-precision instrument applicable in all areas of water and wastewater analysis. MACHEREY‑NAGEL revolutionizes the daily laboratory work with this new spectrophotometer by the combination of premium high-tech components with outstanding usability.
