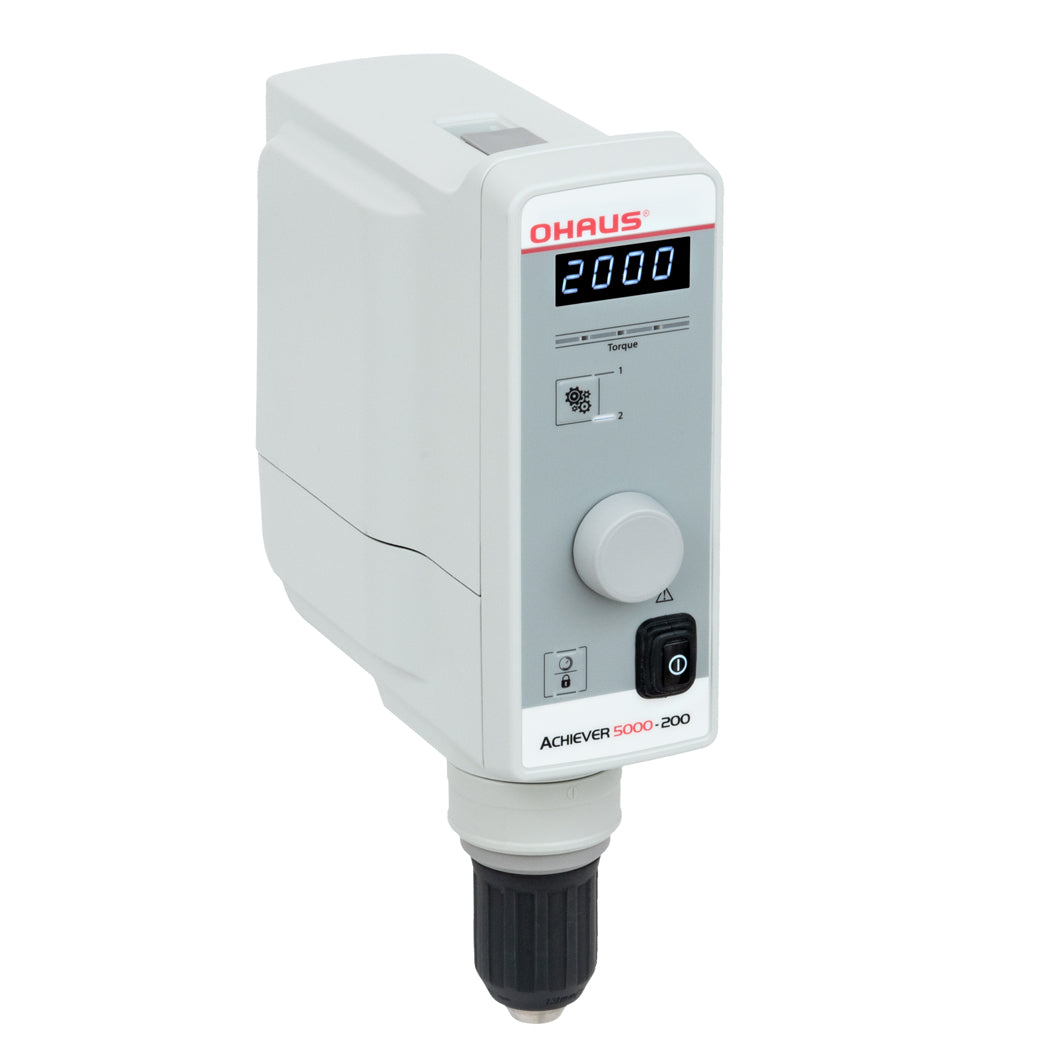

Overhead Stirrer e-A51ST200

Please Login or Register to see price.
Shipping calculated at checkout.
SKU: 30586767

Overhead Stirrer e-A51ST200

Powerful mixing and constant speed is assured with the brushless motor and torque compensation technology - delivering accurate, controlled stirring of viscous liquids with quiet operation
Simplify set up with the Keyless Chuck - no tools required. Change shafts quickly and easily with one handed operation. This unique design will save time and effort for everyone in the lab.
Designed for safety. The lock button prevents accidental speed changes and the motor's overload sensing technology simply shuts off stirring before an overload condition occurs to protect the sample.

Product Specifications

  • Part #:

    30586767

  • Family Name:

    Achiever™ 5000

  • Display:

    Bright LED digital display for speed, real time torque tendency LED indicator bar, and integrated timer

  • Applications:

    Stirring, dissolving, dispersion, emulsification and homogenization in the food and beverage, cosmetic, paint/coatings, pharmaceutical, chemical, glue/adhesive, plastics/polymer and cement/construction industries. Used for pilot scale in manufacturing.

  • Construction:

    Sealed aluminum housing with IP54 ingress protection rating, Keyless Chuck for simple, one-hand operation, brushless motor for quiet operation, and main power switch

  • Design Features:

    Compact design for easy handling, simple knob control, lock button to prevent unintentional setting changes, full protection for overload, overtemperature and overcurrent conditions

  • Family description:

    OHAUS Achiever™ 5000 Overhead Stirrers are designed for powerful, precise stirring, safety and simplicity in all applications. The sealed design has an IP54 rating and ensures safe mixing performance even in the most demanding applications. The keyless chuck and software controlled speed ramping provide easy set up and safe stirring to protect the sample and user. Select from five models with up to 200 Ncm torque and up to 100 L volume capacity.

  • Sample Viscosity (mPa s):

    maximum 100,000

  • Net weight:

    4.600 kg

  • Capacity:

    100 L

  • Speed Range:

    6 rpm – 400 rpm ; 30 rpm – 2000 rpm

  • Chuck Range (Diameter):

    1-13 mm

  • Net Weight:

    4.6 kg

  • Torque (max):

    200 Ncm

  • Dimensions:

    315 mm x 235 mm x 90 mm (H x L x W)

  • Timer:

    1 minute – 99 hours, 59 minutes

  • Working Environment:

    41°F – 104°F, 80%RH, non-condensing

  • IP Rating:

    IP 54

Document downloads

Achiever 5000 Overhead Stirrers

Related Parts: Overhead Stirrer Accessories
