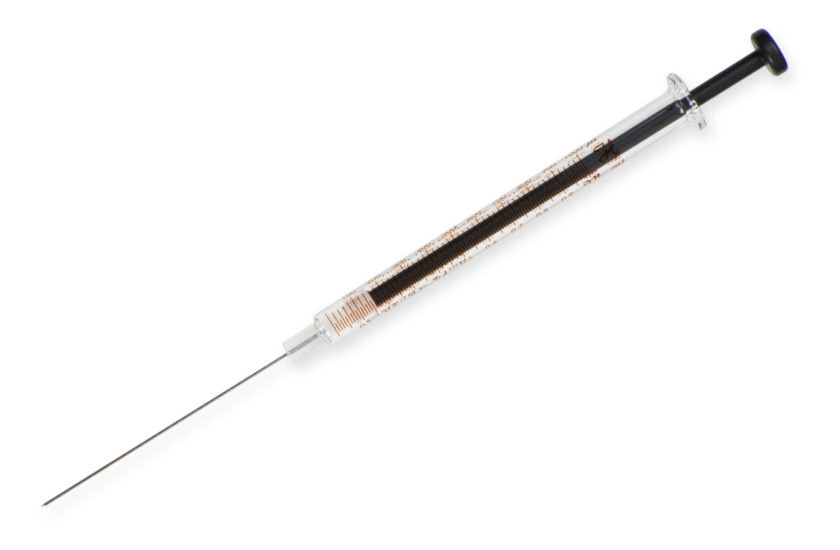

The 1000 series syringes are a mid-volume Gas tight syringe. This series of syringes is ideal for dispensing volumes from 1 mL up to 100 mL. A variety of different terminations and needle options are available in this series.
| Volume | 1 mL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1000 |
| Termination | Luer Tip Needle (LTN) |
| Needle | Cemented Needle |
| Gauge | 23 gauge |
| Point Style | 5 |
| Needle Length | 56 mm (2.20 inches) |
| Fluid Path | SST, borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 29 psig (2bar) |
| Maximum Temperature | 230°F (110°C) |
| Minimum Temperature | 68°F (20°C) |
| Needle Inner Diameter | 0.008 inches (0.20 mm) |
| Needle Outer Diameter | 0.025 inches (0.64 mm) |
| Std Needle Dead Volume | 4.53 μL |
| Sales Quantity | 1 syringe per pack |
