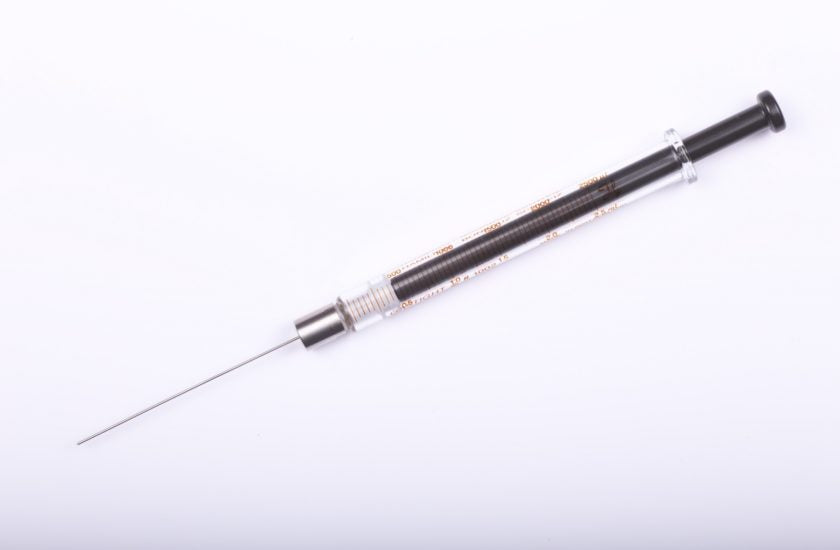

The 1000 series syringes are a mid-volume Gas tight syringe. This series of syringes is ideal for dispensing volumes from 1 mL up to 100 mL. A variety of different terminations and needle options are available in this series.
| Volume | 1 mL |
|---|---|
| Syringe Type | Gastight, Headspace |
| Syringe Series | 1000 |
| Termination | Glue-Free (GF) |
| Needle | Glue-Free (GF) |
| Gauge | 26 gauge |
| Point Style | 5 |
| Needle Length | 56 mm (2.20 inches) |
| Fluid Path | SST, borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 29 psig (2bar) |
| Maximum Temperature | 392°F (200°C) |
| Minimum Temperature | 20°C / 68°F |
| Needle Inner Diameter | 0.0102 inches (0.26 mm) |
| Needle Outer Diameter | 0.0187 inches (0.47 mm) |
| Std Needle Dead Volume | 2.70 µL |
| Sales Quantity | 1 syringe per pack |
