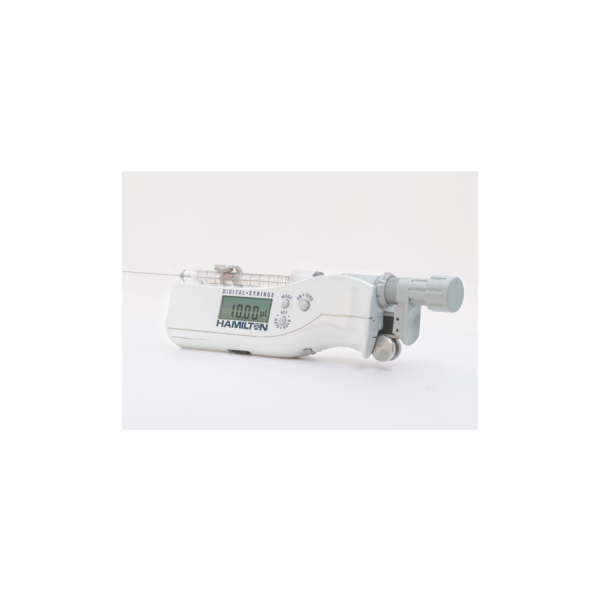

The Hamilton Digital Syringe eliminates parallax errors by providing a digital readout on its integrated LCD screen. An adjustable plunger-stop guarantees reproducible plunger placement. Easily achieve precision up to 0.5% while dispensing volumes from 500 µL down to 50 nL.
Easy-To-Read
Read the syringe volume directly from the liquid crystal display. The digital display eliminates volume reading errors as well as ensures that everyone in the lab reads the syringe volume the same.
Ideal for Instrument Calibration
Every Digital Syringe is a calibrated device traceable to N.I.S.T. methods. Use it to calibrate analytical instruments (AA/ICP, GC, HPLC, etc.), prepare standards and spike samples. Provides easier to compliance with EPA, CLIA, ISO and FDA (GLP, GMP) requirements.
Better Accuracy and Precision
7000 series MODIFIED MICROLITER™ syringes are certified to ± 1.0% accuracy or better. Improved precision is easily achieved with the built-in adjustable plunger stop. The adjustable plunger stop (0-100% of syringe volume) is engaged with a touch of the button on the back of the digital syringe.
| Volume |
0.5 µL |
| Syringe Type |
Microliter |
| Syringe Series |
7000 |
| Termination |
Knurled Hub (KH) |
| Needle |
Knurled Hub (KH) |
| Gauge |
25 gauge |
| Point Style |
3 |
| Needle Length |
2.75 inch (69.9 mm) |
| Fluid Path |
SST, tungsten
SST, borosilicate glass |
| Autoclavable |
Yes |
| Gas Sterilizable |
Yes |
| Pressure |
6000 psig (413.7 bar) |
| Maximum Temperature |
115°C / 239°F |
| Minimum Temperature |
10°C / 50°F |
| Barrel Inner Diameter |
0.0041 inches (0.104 mm) |
| Barrel Outer Diameter |
0.308 inches (7.82 mm) |
| Needle Inner Diameter |
0.0041 inches (0.104 mm) |
| Needle Outer Diameter |
0.020 inches (0.515 mm) |
| Std Needle Dead Volume |
0 µL |
| Sales Quantity |
1 syringe per pack |
