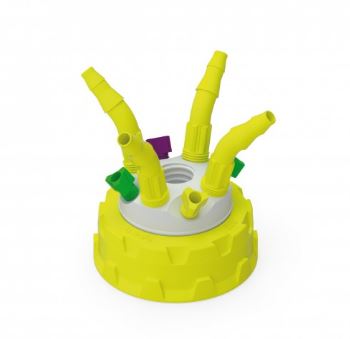

Waste Cap S50 (4x UNF1/4, 1x GL14, 4x NPT1/8") Screw cap S50 made of PP-yellow, insert made of PTFE with 4 capillary connections (UNF 1/4), 4 connections for tubing I.D. 5.5-8.0 mm (NPT 1/8") and 1 connection for exhaust filter (GL14). Including fittings made of PFA (4x green for tubing O.D. 1,6 mm, 4x purple for tubing O.D. 2,2 mm, 4x yellow for tubing O.D. 3,2 mm), 3 blind fittings (PFA-milky-white), 4 hose connectors for tubing I.D. 5.5-8.0 mm (PP-yellow).

Applications
Safe disposal of solvents without leakage of harmful solvent vapours. With b.safe Fittings made of PFA, tubes can be easily inserted in the waste container, the conical seal cone clamps the tubing and seals the connection safely. Large amounts of liquids can be collected by connecting tubing with ID 6,4-9 mm. Solvent vapours from the escaping air during filling are restrained by the Exhaust Filter containing activated carbon. The service life of the filter can be easily monitored through either activating the display on the lid and exchanging the filter in case of completely red colouring or documentation of the exchange date by hand.
