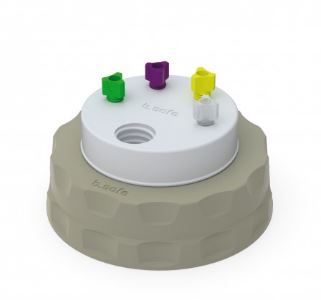

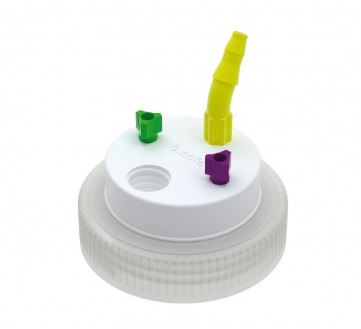

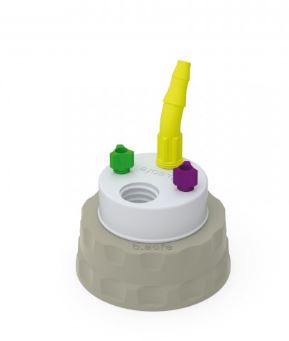

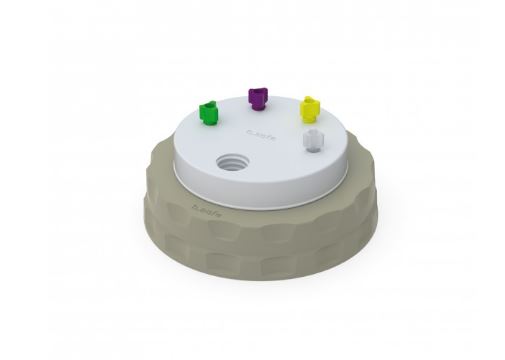

Waste Cap S70/71 (4x UNF1/4, 1x GL14) Screw cap S70/71 made of PP-grey, insert made of PTFE with 4 capillary connections (UNF 1/4) and 1 connection for exhaust filter (GL14). Including fittings made of PFA (4x green for tubing O.D. 1,6 mm, 4x purple for tubing O.D. 2,2 mm, 4x yellow for tubing O.D. 3,2 mm), 3 blind fittings (PFA-milky-white).

Applications

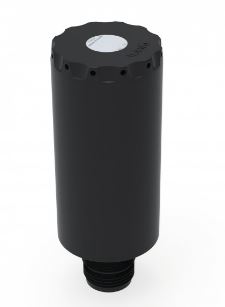

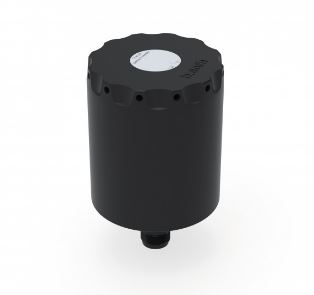

Safe disposal of solvents without leakage of harmful solvent vapours. With b.safe Fittings made of PFA, tubes can be easily inserted in the waste container, the conical seal cone clamps the tubing and seals the connection safely. Large amounts of liquids can be collected by connecting tubing with OD 6,4-9 mm. Solvent vapours from the escaping air during filling are restrained by the Exhaust Filter containing activated carbon. The service life of the filter can be easily monitored through either activating the display on the lid and exchanging the filter in case of completely red colouring or documentation of the exchange date by hand.
