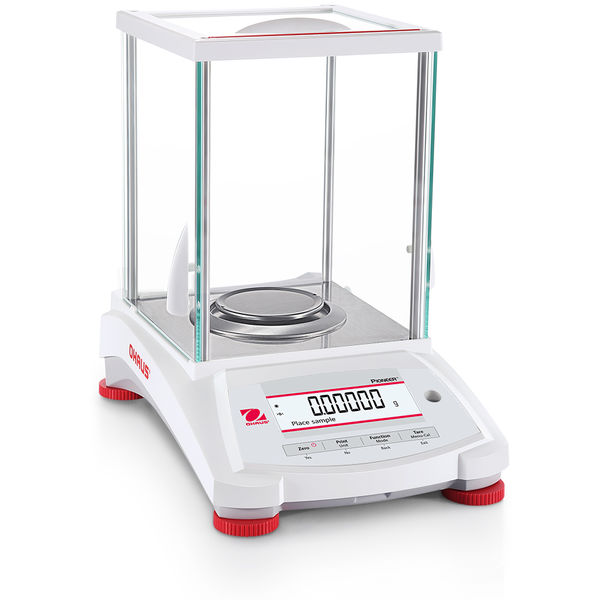

The Pioneer PX5 combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX5 is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.
ApplicationBasic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination
Display
Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)
Communication
RS232;USB
Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages
30478197
82 g/220 g
0.01 mg;0.1 mg
80 mm
Included
309 mm x 321 mm x 209 mm ( HxLxW )
2-Line LCD with Backlight
0.0001 g
20 mg
4.5 kg
0.02 mg;0.1 mg
10 s
To capacity by subtraction
Carat;Custom;Grain;Gram;Hong Kong Tael;Kilogram;Mesghal;Milligram;Momme;Newton;Ounce;Ounce Troy;Pennyweight;Pound;Singapore Tael;Taiwan Tael;Tical;Tola
10°C – 30°C, 80%RH, non-condensing;operability guaranteed between 5°C and 40°C
6971629535911
