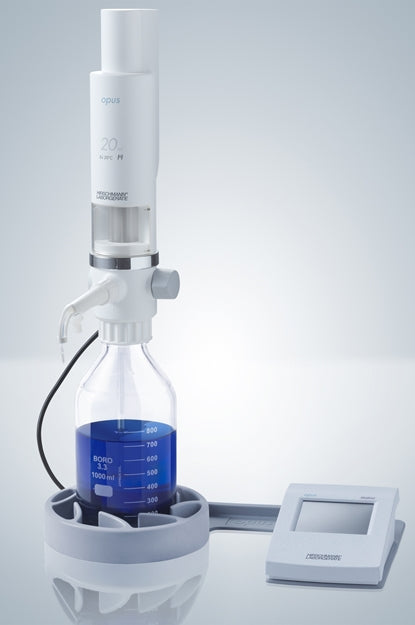

A titration unit with a reagent recirculation system for motor-powered titration directly from the reagent bottle. Available in three volumes (10 ml, 20 ml and 50 ml).

Drop by drop towards precise analysis results - combines accuracy with time-saving and user-friendliness. Electronic control of titration enables the achievement of reproducible results and precisely defined dynamics each time. Time-saving rapid titration with subsequent fine titration enhances accuracy and efficiency. The titration impulse triggered by the motor enables the achievement of a droplet break-up with output volumes from 10 µl to 99.999 ml and delivers resolutions up to the third decimal place. The titration procedure is configured on the intuitive TFT touchscreen. The user is guided through menu functions which are easily legible and comprehensible. Nine different titration procedures with their complete settings can be saved in the method memory and reactivated at any time if required.

Overview of details

• Electronic control and dispensing of volumes
• A light protection window for the valve block is also included in the scope of delivery
• Titration impulse triggered by the motor enables the achievement of a droplet break u p from 10 µl for precision determination
• Media recirculating system for simple and rapid venting without reagent loss
• Free rotation
• TFT touchscreen with user-friendly menu
• Method memory for nine different titration procedures with storage o f all settings
• USB and RS232 interface for PC connection
• Integration in automated procedures possible
