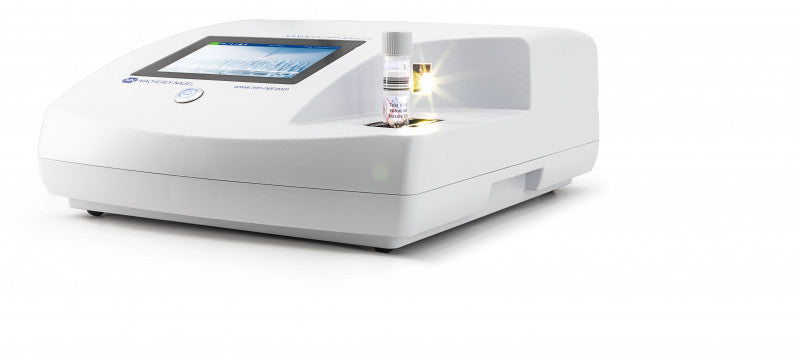

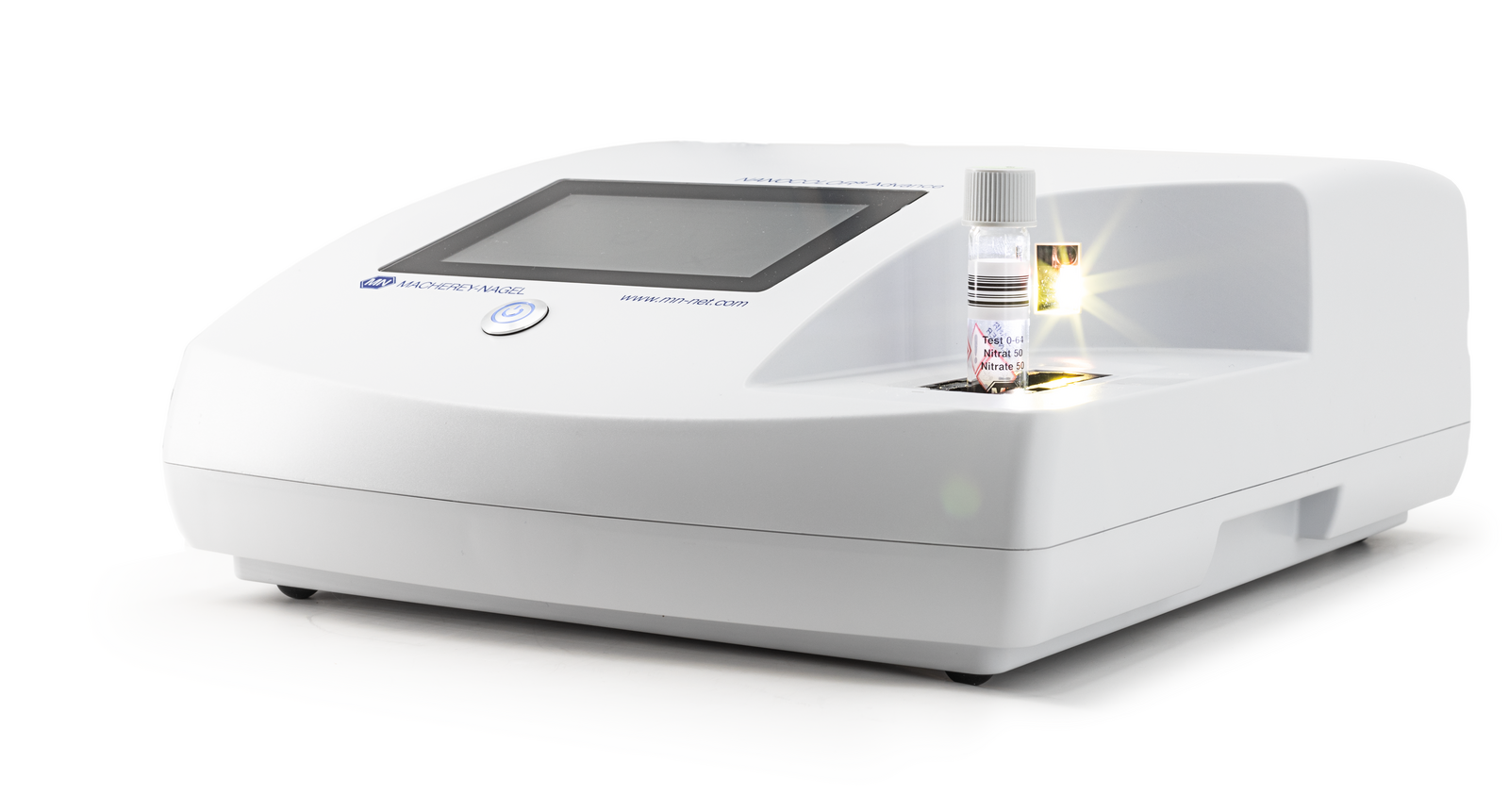

The NANOCOLOR Advance is a versatile, high-performance spectrophotometer designed for accurate and reliable water and wastewater analysis in both laboratory and field environments. Combining the portability of the PF-12Plus with the precision of the NANOCOLOR VIS II, it delivers fast, dependable results as part of the daily testing routine.
With a wavelength range of 340–800 nm, the instrument supports all photometrically evaluable MACHEREY-NAGEL test kits and features automatic barcode recognition for simple, error-free operation. Integrated ISO 7027-compliant turbidity monitoring helps identify high particulate samples and potential interferences, improving confidence in reported results.
A clear colour touchscreen, extensive pre-programmed methods, GLP-compliant data management, and a rechargeable battery make the NANOCOLOR Advance a practical, future-ready solution for modern water analysis.
| Brand | NANOCOLOR |
| Type | Spectrophotometer with reference detector technology (RDT) |
| Light source | Halogen lamp |
| Optical system | Monochromator |
| Wavelength | 340 nm–800 nm |
| Wavelength accuracy | ± 2 nm |
| Wavelength resolution | 1 nm |
| Wavelength reproducibility | ± 0.1 nm |
| Wavelength calibration | Automatic |
| Wavelength selection | Automatic, barcode, manual |
| Scan speed | 1 complete scan in less than 3 min |
| Spectral bandwidth | < 4 nm |
| Photometric range | +/- 3.0 E in the range 340–800 nm |
| Photometric accuracy | 0.003 E at 0.0–0.5 E; 1% at 0.5–2.0 E |
| Photometric linearity | < 0.5 % at 0.5–2.0 E; ≤ 1% at > 2 E with neutral glass filters at 546 nm |
| Stray light | < 0.5 % |
| Measuring modes | More than 200 pre-programmed tests and special methods; 99 fully programmable methods; absorbance; transmission; factor; kinetics; 2-point calibration; scan; nephelometric turbidity measurement |
| Preprogrammed tests | NANOCOLOR tube tests and standard tests, VISOCOLOR ECO test kits and Powder Pillows |
| Turbidity measurement | Nephelometric turbidity measurement (based on ISO 7027, 16 mm and 24 mm) 1–1000 NTU |
| Cuvette slot | Tube test 16 mm, 24 mm OD; Standard test 10 mm, 20 mm, 40 mm and 50 mm |
| External light | Insensitive to external light, fast measurements without cuvette slot cover |
| Data memory | 1000 results, GLP conform |
| Display | Backlit colored 5" display with touch screen |
| Internal quality control | With NANOCONTROL NANOCHECK 2.0 |
| Operation | Barcode technology, icon-based menu guidance, touch screen |
| Language | DE / EN / FR / ES / PT / PL / NL |
| Interfaces | LAN (CAT 6, only use shielded cables with a maximum length of 20 m) 2 x USB (Host), 1 x USB (Function) |
| Update | Free via USB stick |
| Operating range | 10–40 °C, max. 80 % relative humidity (non-condensing) |
| Power supply | Input 110–240 V AC, Output 12 V 3A DC; 6,4 V, 7,2 Ah via built-in battery |
| Dimensions | 325 x 280 x 130 mm |
| Weight | 3.8 kg |
| Warranty | 2 Years |
| CE certified | Yes |
| Scope of delivery | Photometer, manual (quick start guide), protective covering, power cable, USB stick, calibration cuvette, certificate and cleaning cloth |
| Hazardous material | No |
