Analytical Balance AX224/E

Please Login or Register to see price.
Shipping calculated at checkout.
SKU: 30122612

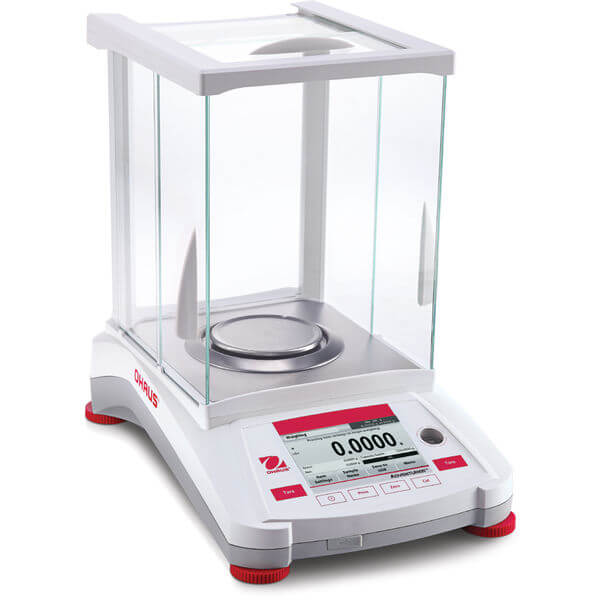

Analytical Balance AX224/E

Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.

Application

Weighing, Parts Counting, Percent Weighing, Check Weighing, Animal/Dynamic Weighing, Totalization/Statistics, Formulation, Density Determination, Display Hold

Display

4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness

Communication

RS232 (Included);USB;USB Host

Design Features

Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages

Product Specifications

  • Part #:

    30122612

  • Maximum Capacity:

    220 g

  • Readability:

    0.1 mg

  • Pan Size:

    90 mm

  • Draftshield:

    Included

  • Dimensions:

    340 mm x 354 mm x 230 mm ( HxLxW )

  • Display:

    Full-Color 4.3 in Touchscreen WQVGA

  • Linearity ±:

    0.2 mg

  • Minimum Weight (USP, 0.1%, typical):

    0.2 g

  • Net Weight:

    5.1 kg

  • Repeatability, typical:

    0.1 mg

  • Stabilization Time:

    3 s

  • Tare Range:

    To capacity by subtraction

  • Units of Measurement:

    Baht;Carat;Custom;Grain;Gram;Hong Kong Tael;Mesghal;Milligram;Momme;Newton;Ounce;Ounce Troy;Pennyweight;Pound;Singapore Tael;Taiwan Tael;Tical;Tola

  • Working Environment:

    10°C – 30°C, 80%RH, non-condensing

  • EAN:

    6971629531555
