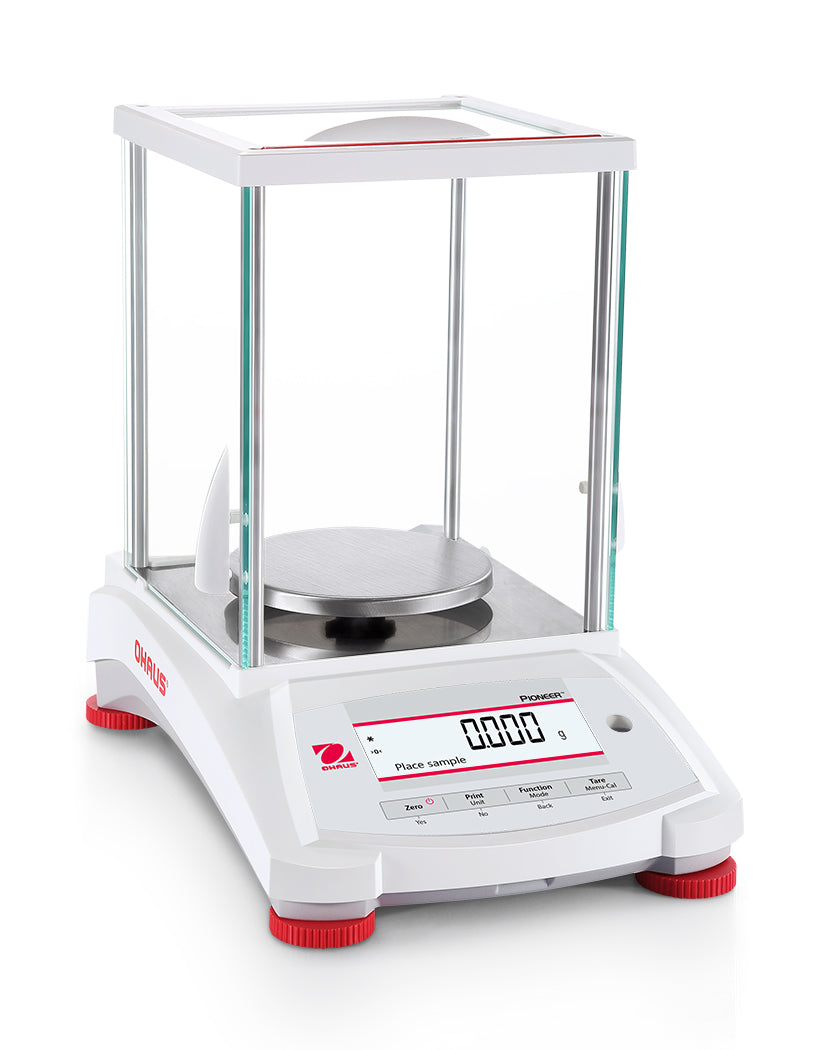

The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.
ApplicationBasic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination
Display
Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)
Communication
RS232;USB
Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages
Product Specifications
-
Part #:
30429811
-
Maximum Capacity:
220 g
-
Readability:
0.1 mg
-
Pan Size:
90 mm
-
Draftshield:
Included
-
Dimensions:
309 mm x 321 mm x 209 mm ( HxLxW )
-
Display:
2-Line LCD with Backlight
-
Linearity ±:
0.0002 g
-
Minimum Weight (USP, 0.1%, typical):
200 mg
-
Net Weight:
4.5 kg
-
Repeatability, typical:
0.0001 g
-
Stabilization Time:
3 s
-
Tare Range:
To capacity by subtraction
-
Units of Measurement:
Baht;Carat;Custom;Grain;Gram;Hong Kong Tael;Kilogram;Mesghal;Milligram;Momme;Newton;Ounce;Ounce Troy;Pennyweight;Pound;Singapore Tael;Taiwan Tael;Tical;Tola
-
Working Environment:
10°C – 30°C, 80%RH, non-condensing;operability guaranteed between 5°C and 40°C
-
EAN:
6971629530671
