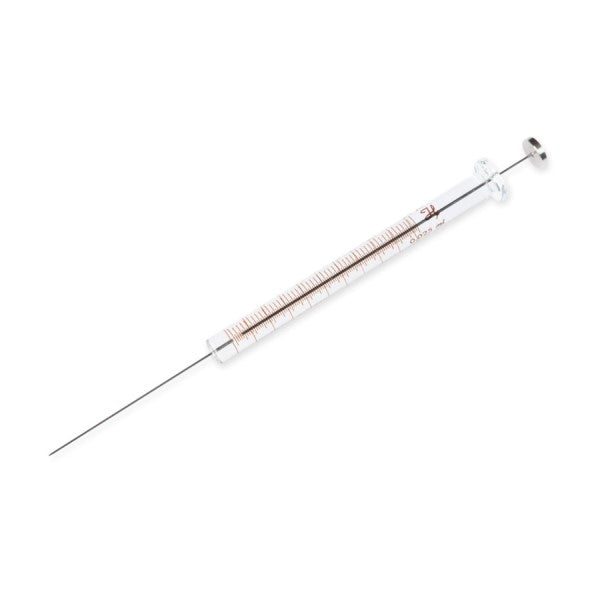

Hamilton 25 µL, Model 1702 N CTC Syringe 23 gauge, point style AS

Please Login or Register to see price.
SKU: 67430-01

Hamilton 25 µL, Model 1702 N CTC Syringe 23 gauge, point style AS

The economical S-Line Syringe is hand made from the highest quality materials to exceed your expectations for most standard chromatographic applications. The Gastight™ version of the S-Line syringe is an ideal choice for GC sample injections. It incorporates a precision-machined PTFE plunger tip which creates a leak-free seal. With the tight fit in the glass barrel, the tip wipes the interior of the syringe barrel free of sample, minimizing sample carryover. This feature is particularly useful with heterogeneous samples as it reduces the chance that a deposit will occur and cause the plunger to freeze.

  • The cost-effective choice for CTC PAL autosampler applications
  • Deliver great performance in everyday use for GC injections at an exceptional value
  • Precision-machined PTFE plunger tip which creates a leak-free seal
  • Tight fit in glass barrel minimizes sample carryover
Volume 25 µL
Syringe Type Gastight
Syringe Series 1700
Termination Cemented Needle (N)
Needle Cemented Needle
Gauge 23 gauge
Point Style AS
Needle Length 2 inch (51 mm)
Fluid Path SST, borosilicate glass
Autoclavable No
Gas Sterilizable Yes
Pressure 2000 psig (137.9 bar)
Maximum Temperature 50°C / 122°F
Minimum Temperature 20°C / 68°F
Needle Inner Diameter 0.0128 inches (0.325 mm)
Needle Outer Diameter 0.025 inches (0.642 mm)
Std Needle Dead Volume 4.53 μL
Sales Quantity 1 syringe per pack
