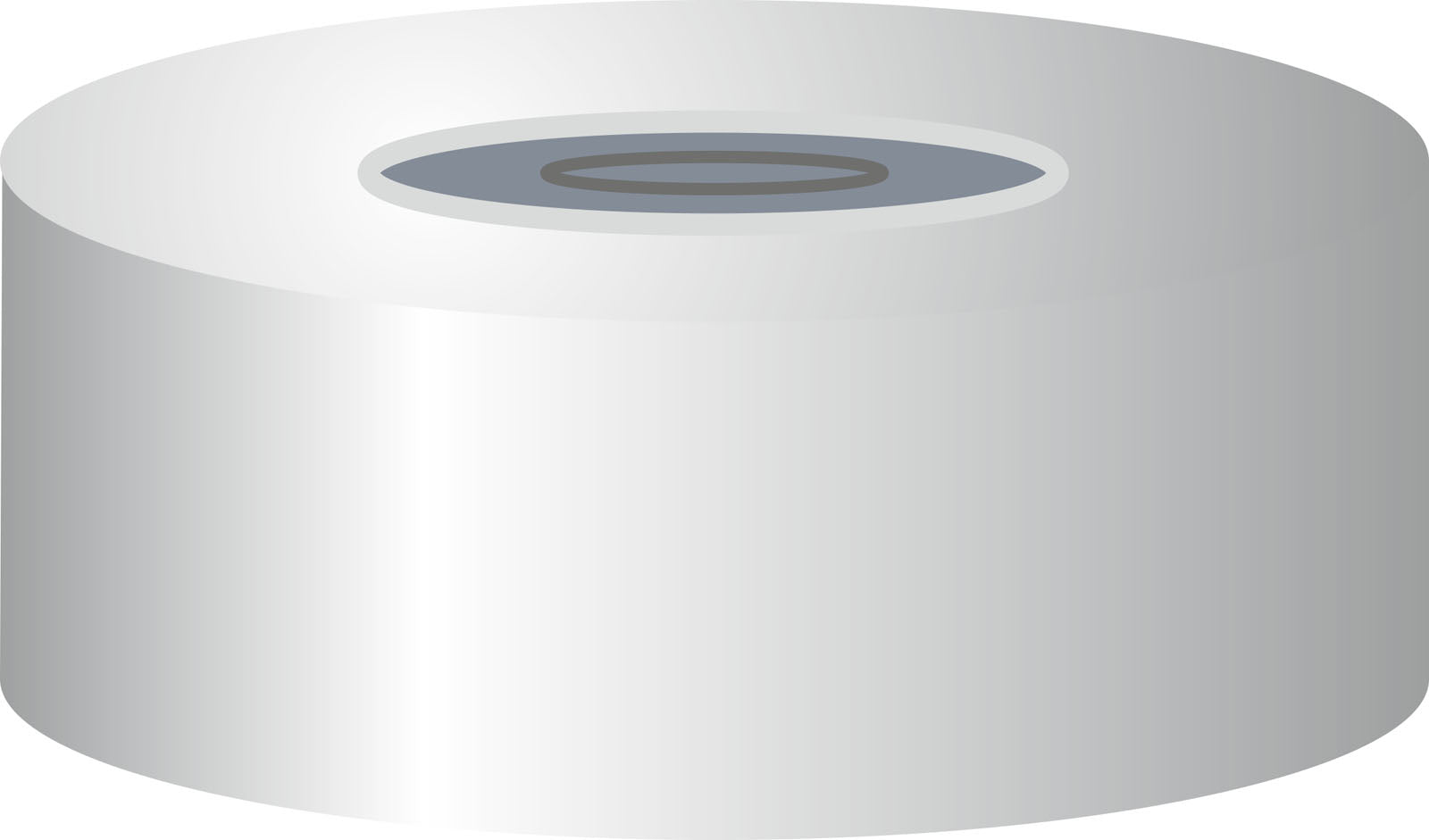

These closures with molded Butyl/PTFE septa are only laminated with PTFE in the contact area with the sample. Thus the elastomeric Butyl can achieve on the vial's glass rims a very tight seal, while in comparison a completely PTFE covered septum would have a very slippery surface on the glass and could easily be twisted around.
-
Closure type
Crimp closure
Closure magnetic
No
Autosampler compatibility
PerkinElmer
Cap material
Aluminum
Cap color
Silver
Cap hole
Yes
Assembling process
Assembled
Autosampler compatibility
Agilent
Septa hardness
50° shore A
Additional closure features
Molded septum, only centrically laminated with PTFE, typically called Pharma-Fix, excellent sealing, temp. resistant from -40 °C up to 120 °C
Septa material
Butyl/PTFE
Colors of septa material
Dark gray/gray
Scope of delivery
100x N 20 ready assembled crimp closures
Nominal diameter
N 20
Autosampler compatibility
Varian CP-9020/9025 / CP-9060 / Genesis
Recommended application(s)
Headspace
Septa thickness
3.0 mm
Septa material
Butyl/PTFE (Pharma-Fix)
