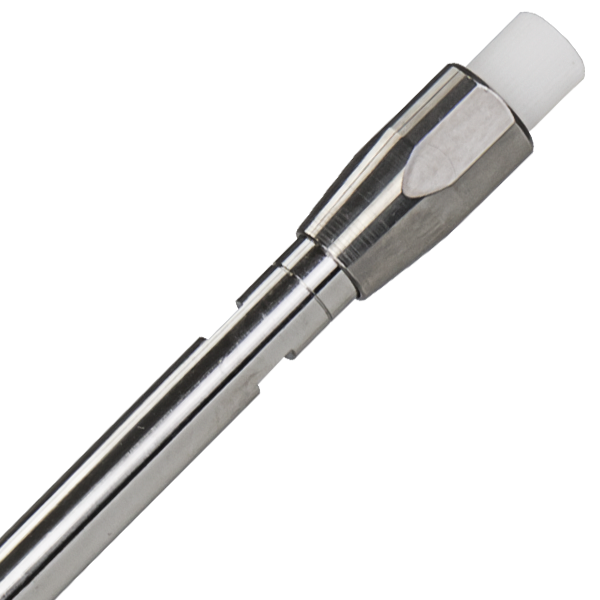

EC HPLC column (analytical), NUCLEODEX ALPHA-PM, 5 µm, 200x4 mm


NEED HELP WITH THIS PRODUCT?

ASK OUR EXPERTS
Macherey Nagel - Chromatography / HPLC column (analytical)

EC HPLC column (analytical), NUCLEODEX ALPHA-PM, 5 µm, 200x4 mm

£1,240.00
Shipping calculated at checkout.
SKU: 720127.4

EC HPLC column (analytical), NUCLEODEX ALPHA-PM, 5 µm, 200x4 mm

Cyclodextrin-modified silica phases for HPLC enantiomer separation. For all permethylated phases the ability to form hydrogen bonds is reduced, the hydrophobicity of the phase is increased compared to β‑OH, resulting in shorter retention times.

  • Recommended application(s)

    HPLC

    Particle type

    Fully porous particles (FPP)

    Particle shape

    Spherical

    Endcapped

    No

    Mode

    Special application or diverse

    Pore size

    100 Å

    Particle size

    5 µm

    USP listing

    Not available or proprietary

    Scope of delivery

    1x analytical HPLC column, instruction leaflet, certificate of analysis

    Method

    HPLC, analytical

    Hardware

    Stainless steel

    Type

    EC HPLC column (analytical)

    Column inner diameter

    4 mm

    Column volume

    2.5 mL

    Carbon content

    Not available or proprietary

    Pressure stability (max)

    400 bar

    Pore volume

    1 mL/g

    Specific surface according to BET

    350 m²/g

    Base material

    NUCLEOSIL - the standard silica

    Brand

    NUCLEODEX

    Recommended application(s)

    Chiral, enantiomers

    Recommended application(s)

    Enantiomers

    Temperature stability (max)

    50 °C

    Column length

    200 mm

    pH stability

    3.0–8.0

    Recommended application(s)

    Mecoprop

    Recommended application(s)

    Dichlorprop

    Recommended application(s)

    Free carboxylic acids

    Recommended application(s)

    trans-stilbene oxide

    Recommended application(s)

    Styrene oxide

    Phase

    NUCLEODEX ALPHA-PM

    Surface chemistry

    Permethylated α-cyclodextrin (chiral selector) modification

    Eluent in HPLC column

    CH₃OH (methanol) – 50 mmol/L phosphate, pH 3 (70/30, v/v)
