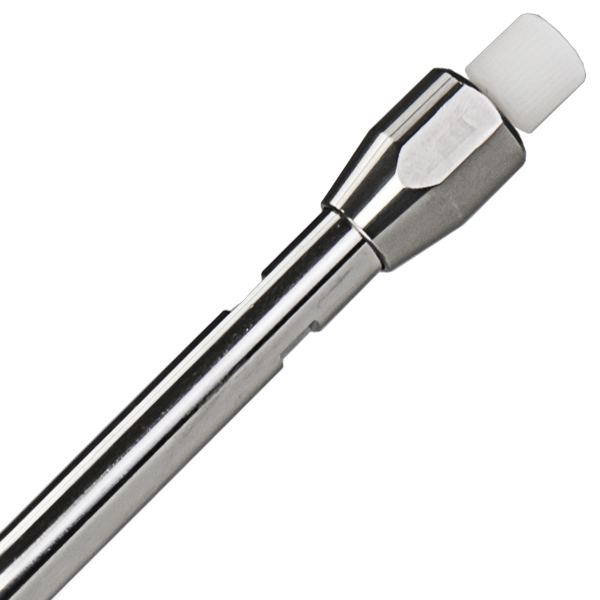

- EC HPLC column (analytical), NUCLEOSIL 100-5 CN-RP, 5 µm, 250x4 mm
The cyanopropyl phase is able to generate a clearly recognizable different retention behavior compared to purely alkyl-functionalized surface modifications. The polarity can be classified as intermediate based on multiple retention mechanisms such as dipole-dipole, π-π, and also hydrophobic interactions. Therefore, CN phases show a distinct selectivity for polar organic compounds as well as for molecules containing π-electron systems (e.g., analytes with double bonds). This HPLC phase can be run in the RP mode using aqueous-organic eluent mixtures as well as in the NP mode, e.g., with hexane as mobile phase. This HPLC column is packed with CN modification, based on the original NUCLEOSIL silica gel. It is one of the first spherical silicas for HPLC and was originally developed by MACHEREY-NAGEL in 1974. It is exclusively manufactured in Germany and is still one of the most used HPLC silicas in quality control around the globe.
-
Recommended application(s)
HPLC
Particle type
Fully porous particles (FPP)
Particle shape
Spherical
Endcapped
No
pH stability
2.0–8.0
Mode
Reversed phase (RP)
Pore size
100 Å
Particle size
5 µm
Surface chemistry
Cyano, nitrile (CN) modification
Recommended application(s)
Steroids
Recommended application(s)
Organic acids
Scope of delivery
1x analytical HPLC column, instruction leaflet, certificate of analysis
Recommended application(s)
Reversed phase
Temperature stability (max)
60 °C
Tmax (phosphate buffer)
40 °C
Method
HPLC, analytical
Hardware
Stainless steel
Type
EC HPLC column (analytical)
Eluent in HPLC column
Acetonitrile – water
Column inner diameter
4 mm
Column length
250 mm
Column volume
3.15 mL
Recommended application(s)
Normal phase
Recommended application(s)
Tricyclic antidepressants
Mode
Multi-mode (RP and NP)
USP listing
L10
Brand
NUCLEOSIL
Pressure stability (max)
400 bar
Pore volume
1 mL/g
Specific surface according to BET
350 m²/g
Base material
NUCLEOSIL - the standard silica
Phase
NUCLEOSIL 100-5 CN-RP
Carbon content
5.0 %
