GC column, polar, PERMABOND CW 20 M, 50 m L, 0.32 mm ID, 0.25 µm df


NEED HELP WITH THIS PRODUCT?

ASK OUR EXPERTS
Macherey Nagel - Chromatography / GC Column

GC column, polar, PERMABOND CW 20 M, 50 m L, 0.32 mm ID, 0.25 µm df

Please Login or Register to see price.
Shipping calculated at checkout.
SKU: 723321.5

GC column, polar, PERMABOND CW 20 M, 50 m L, 0.32 mm ID, 0.25 µm df

Capillary columns for gas chromatography (GC), polyethylene glycol 20000 Dalton, polar GC phase, meets USP G16. Similar phases: OPTIMA WAX, DB-Wax, Supelcowax, HP‑Wax, HP-INNOWAX, Rtx‑Wax, CP-Wax 52 CB, Stabilwax, 007-CW, BP20, AT-Wax, ZB-Wax

  • Recommended application(s)

    GC

    Polarity

    Polar

    Scope of delivery

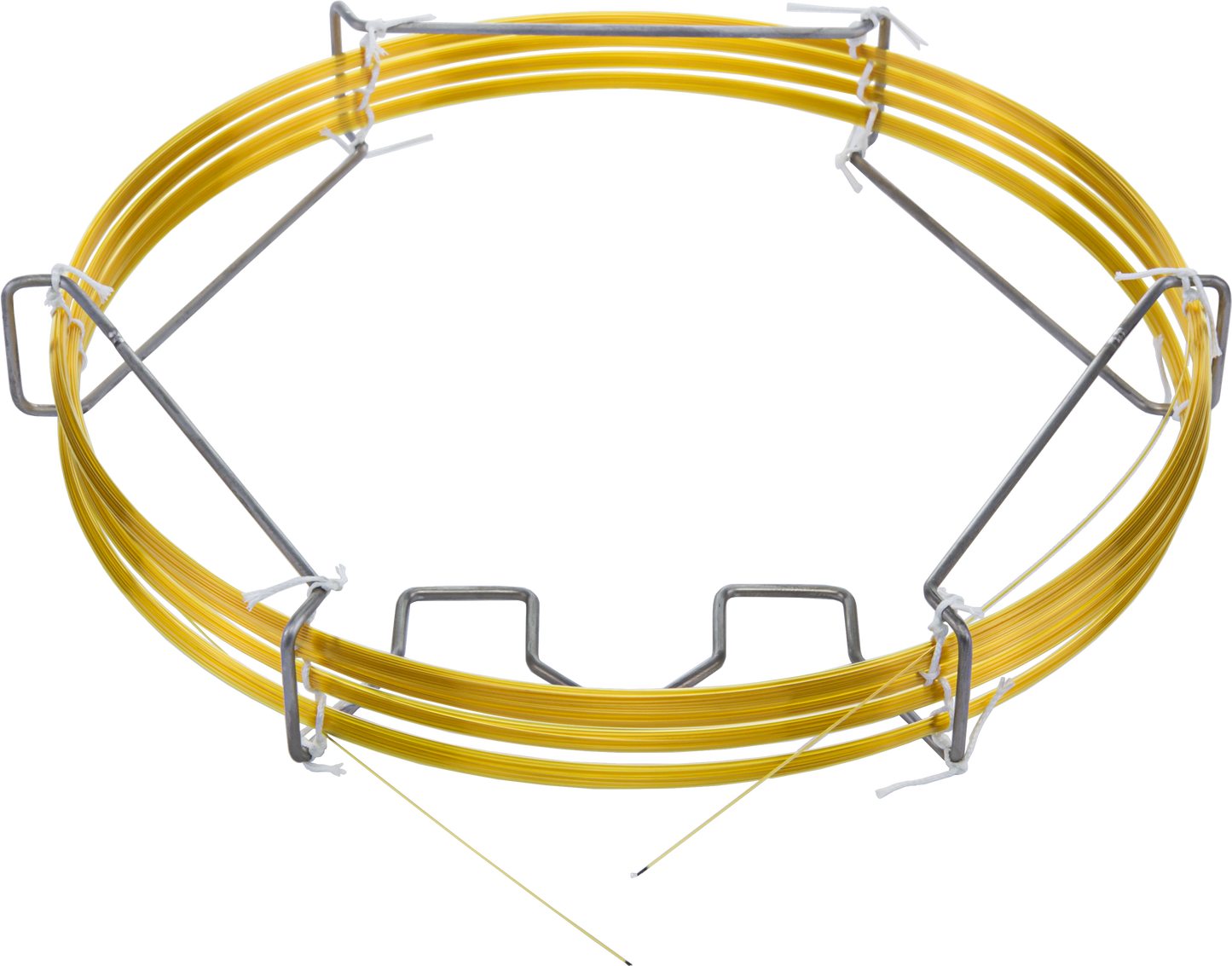

    1x GC column coiled/wound on metal cage, user manual, certificate of analysis

    Recommended application(s)

    Gas chromatography

    Cage size

    7" (inch)

    Hardware

    Fused Silica coated with polyimide coiled/wound on stainless steel cage

    Type

    GC column

    Method

    Gas chromatography (GC)

    Housing type

    Wall coated open tubular (WCOT) capillary column; internal wall of capillary is coated with a very fine film of liquid stationary phase

    Integrated precolumn

    No

    Film thickness

    0.25 µm

    Column length

    50 m

    Column inner diameter

    0.32 mm

    Recommended application(s)

    FAMEs

    Recommended application(s)

    Dioxins

    Composition

    Polyethylene glycol, PEG (CW 15000 - 20000 dalton)

    Tmax isotherm

    220 °C

    Tmax temp. program

    240 °C

    Brand

    PERMABOND

    Phase

    PERMABOND CW 20 M

    USP listing

    G16
