GC column, Nonpolar–low polar, OPTIMA 5 HT, 15 m L, 0.25 mm ID, 0.25 µm df


NEED HELP WITH THIS PRODUCT?

ASK OUR EXPERTS
Macherey Nagel - Chromatography / GC Column

GC column, Nonpolar–low polar, OPTIMA 5 HT, 15 m L, 0.25 mm ID, 0.25 µm df

£420.00
Shipping calculated at checkout.
SKU: 726106.15

GC column, Nonpolar–low polar, OPTIMA 5 HT, 15 m L, 0.25 mm ID, 0.25 µm df

High performance capillary GC columns for high temperature gas chromatography (GC) applications, polarity similar to 5 % phenyl – 95 % methylpolysiloxane, meets USP G27|G36. Chemically bonded, cross-linked silarylene phase, polarity index according to 5 % phenyl – 95 % methylpolysiloxane. Ideal for MS detectors. Can be rinsed with solvents. Similar phases: DB-5HT, VF-5HT, HT-5, XTI-5HT, ZB-5HT

  • Recommended application(s)

    GC

    Scope of delivery

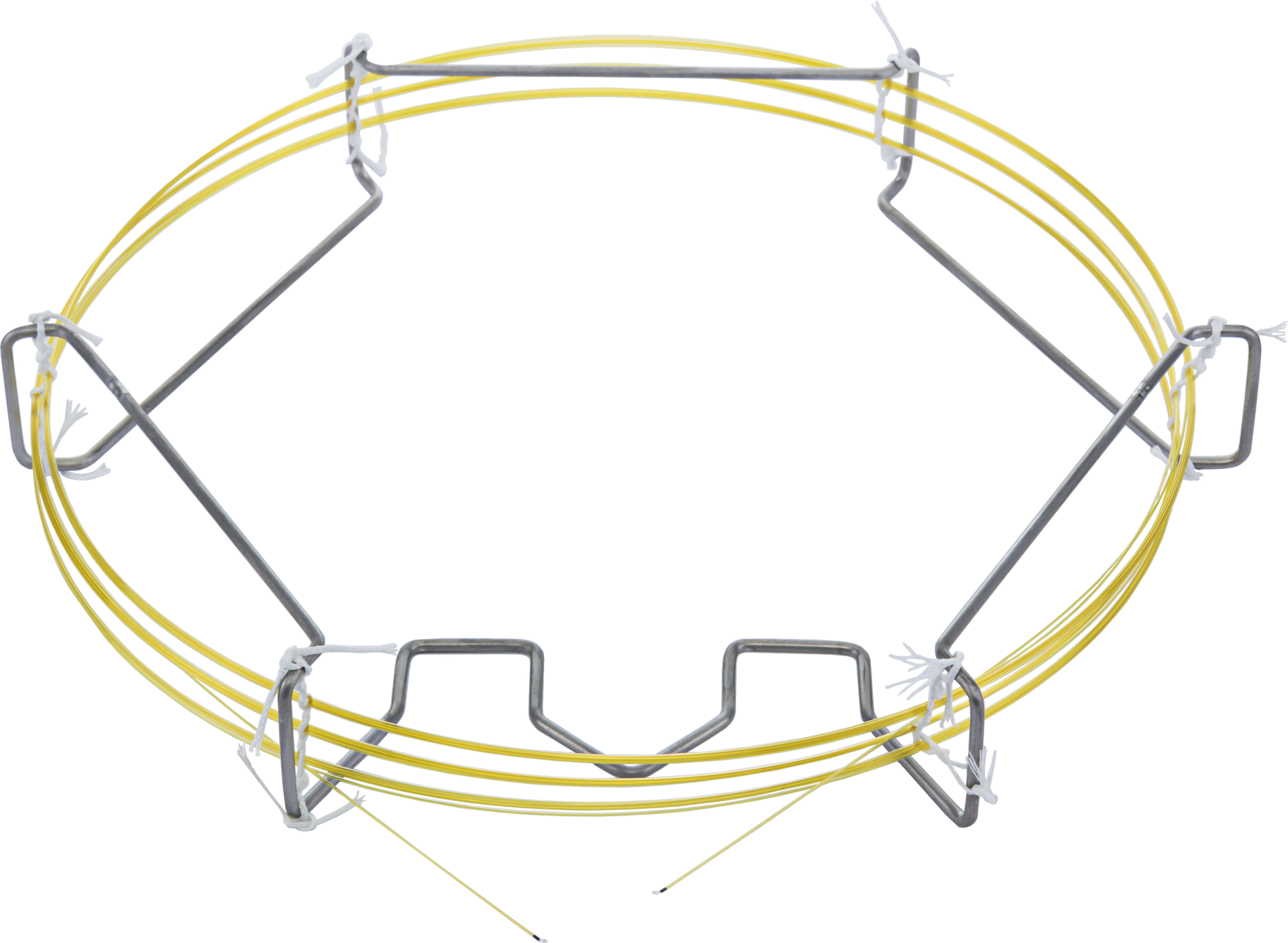

    1x GC column coiled/wound on metal cage, user manual, certificate of analysis

    Brand

    OPTIMA

    Recommended application(s)

    Gas chromatography

    Cage size

    7" (inch)

    Hardware

    Fused Silica coated with polyimide coiled/wound on stainless steel cage

    Type

    GC column

    Method

    Gas chromatography (GC)

    Housing type

    Wall coated open tubular (WCOT) capillary column; internal wall of capillary is coated with a very fine film of liquid stationary phase

    Integrated precolumn

    No

    Column inner diameter

    0.25 mm

    Column length

    15 m

    Film thickness

    0.25 µm

    USP listing

    G27

    USP listing

    G36

    Polarity

    Nonpolar–low polar

    Tmax isotherm

    380 °C

    Tmax temp. program

    400 °C

    Phase

    OPTIMA 5 HT

    Composition

    Cross-linked silarylene phase - polarity similar to 5 % phenyl – 95 % methylpolysiloxane, 5 % diphenyl – 95 % dimethylpolysiloxane

    Recommended application(s)

    Oils

    Recommended application(s)

    Simulated distillation

    Recommended application(s)

    Hydrocarbons

    Recommended application(s)

    Fuel

    Recommended application(s)

    High boiling analytes
