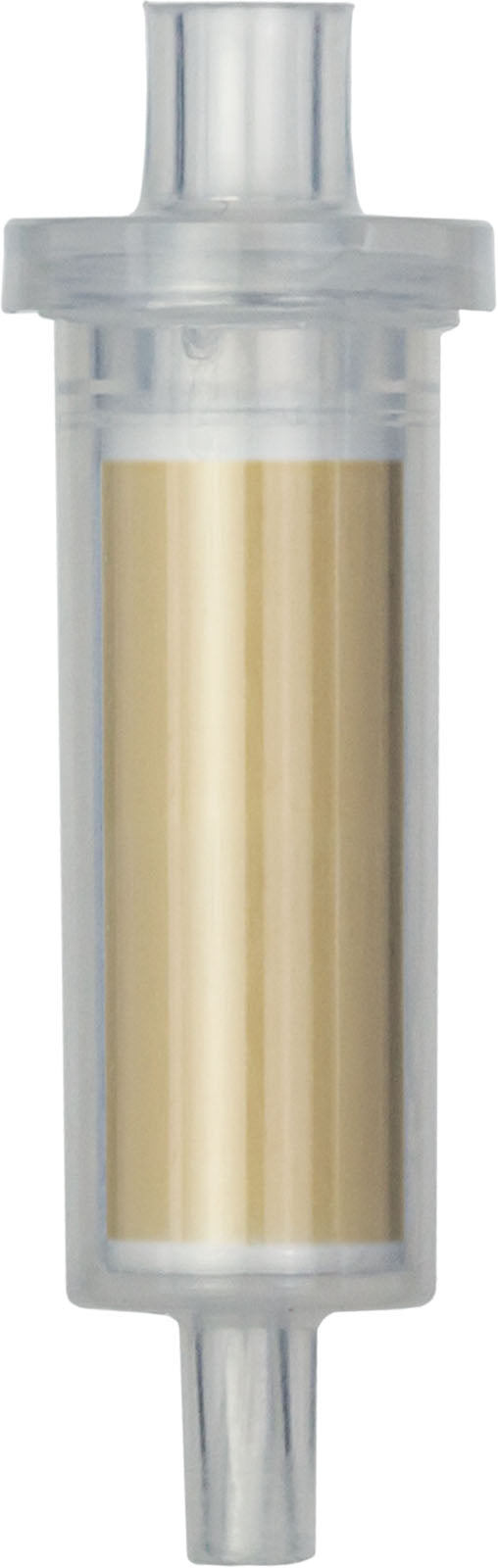

CHROMAFIX cartridges are PP cartridges with PE filter elements. Three different sizes with different adsorbent weights - Small (0.4 mL), Medium (0.8 mL), Large (1.8 mL). Especially suited for convenient solid phase extraction of small sample volumes. Female Luer fitting at the inlet, male Luer tip as exit. Offers alternative way of handling using positive pressure by syringes or peristaltic pumps.
-
Particle type
Fully porous particles (FPP)
Particle shape
Spherical
Endcapped
No
Filter element material
Polyethylene (PE)
Recommended application(s)
Herbicides
Carbon content
Not available or proprietary
pH stability
1.0–14.0
Particle size
85 µm
Base material
PS/DVB copolymer
Scope of delivery
50x (10x5) SPE cartridges, certificate of analysis
Brand
CHROMAFIX
Method
Solid phase extraction (SPE)
Hardware
Polypropylene (PP) cartridges with polyethylene (PE) filter elements
Column shape
Tubular syringe-shaped cartridge with Luer tip inlet and outlet
Pressure stability (max)
10 bar
Column type
SPE cartridge
Cartridge size
Large (1.8 mL)
Mode
Mixed mode (RP and Ion exchange (IEX))
Recommended application(s)
Acidic active ingredients from strongly matrix-contaminated samples (urine, plasma, serum)
Recommended application(s)
Phenolic acids
Recommended application(s)
Acids with pKa 2–8
Phase
HR-XA
Pore size
55–65 Å
Specific surface according to BET
850 m²/g
Surface chemistry
Hydrophobic spherical polystyrene-divinylbenzene copolymer (PS/DVB) with quaternary ammonium modification, very strong mixed mode anion exchanger (MAX)
Minimum filling quantity
510 mg
