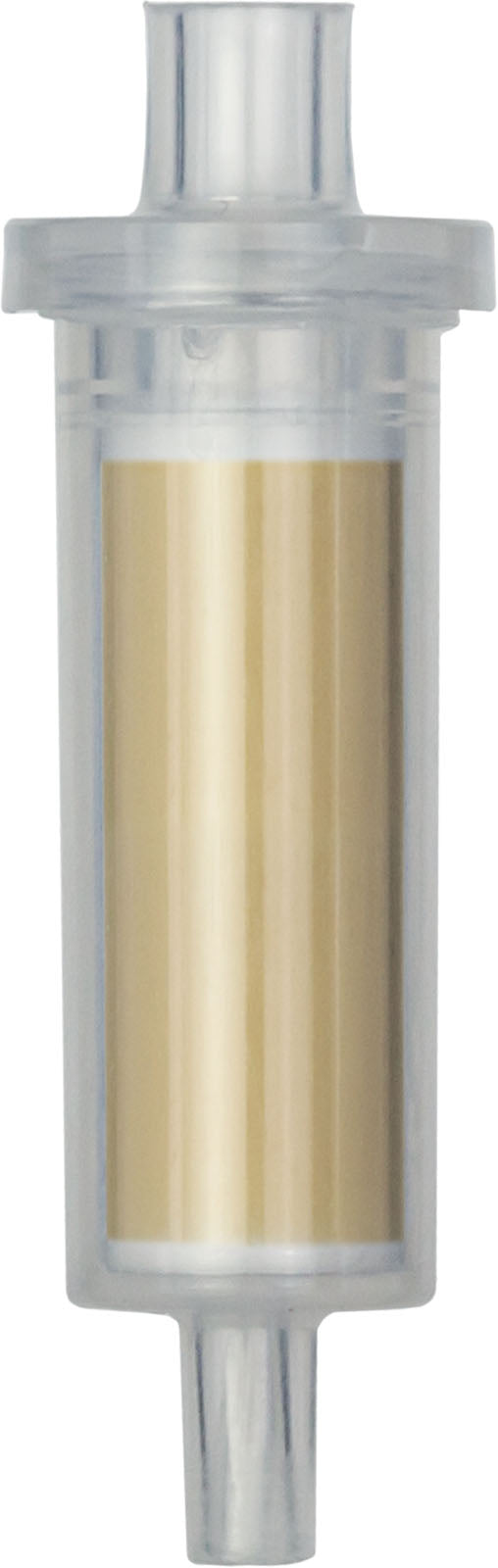

CHROMAFIX cartridges are PP cartridges with PE filter elements. Three different sizes with different adsorbent weights - Small (0.4 mL), Medium (0.8 mL), Large (1.8 mL). Especially suited for convenient solid phase extraction of small sample volumes. Female Luer fitting at the inlet, male Luer tip as exit. Offers alternative way of handling using positive pressure by syringes or peristaltic pumps.
-
Particle type
Fully porous particles (FPP)
Particle shape
Spherical
Endcapped
No
Filter element material
Polyethylene (PE)
Carbon content
Not available or proprietary
pH stability
1.0–14.0
Particle size
85 µm
Pore size
55–60 Å
Base material
PS/DVB copolymer
Scope of delivery
50x (10x5) SPE cartridges, certificate of analysis
Brand
CHROMAFIX
Method
Solid phase extraction (SPE)
Hardware
Polypropylene (PP) cartridges with polyethylene (PE) filter elements
Column shape
Tubular syringe-shaped cartridge with Luer tip inlet and outlet
Pressure stability (max)
10 bar
Column type
SPE cartridge
Cartridge size
Large (1.8 mL)
Mode
Mixed mode (RP and Ion exchange (IEX))
Specific surface according to BET
850 m²/g
Recommended application(s)
Perfluorinated surfactants
Recommended application(s)
Acidic compounds
Recommended application(s)
Sulfonates
Recommended application(s)
Active ingredients from strongly matrix contaminated samples (urine, plasma, serum)
Recommended application(s)
Strong acids with pKa < 1
Phase
HR-XAW
Surface chemistry
Hydrophobic spherical polystyrene-divinylbenzene copolymer (PS/DVB) with secondary and tertiary ammonium modification, weak Mixed mode anion exchanger (WAX)
Minimum filling quantity
360 mg
