Mode
Normal phase (NP)
Particle type
Fully porous particles (FPP)
Endcapped
No
Particle shape
Irregular
Particle size
40–80 µm
Base material
Polyamide
Surface chemistry
Polyamide (PA)
pH stability
Not available or not applicable
Filter element material
Polyethylene (PE)
Carbon content
Not available or proprietary
Recommended application(s)
PAHs
Pore size
Not available or proprietary
Specific surface according to BET
Not available or proprietary
Scope of delivery
50x (10x5) SPE cartridges, certificate of analysis
Brand
CHROMAFIX
Cartridge size
Small (0.4 mL)
Method
Solid phase extraction (SPE)
Hardware
Polypropylene (PP) cartridges with polyethylene (PE) filter elements
Column shape
Tubular syringe-shaped cartridge with Luer tip inlet and outlet
Pressure stability (max)
10 bar
Column type
SPE cartridge
Minimum filling quantity
30 mg
Recommended application(s)
Flavonoids
Phase
PA
SKU: 731849

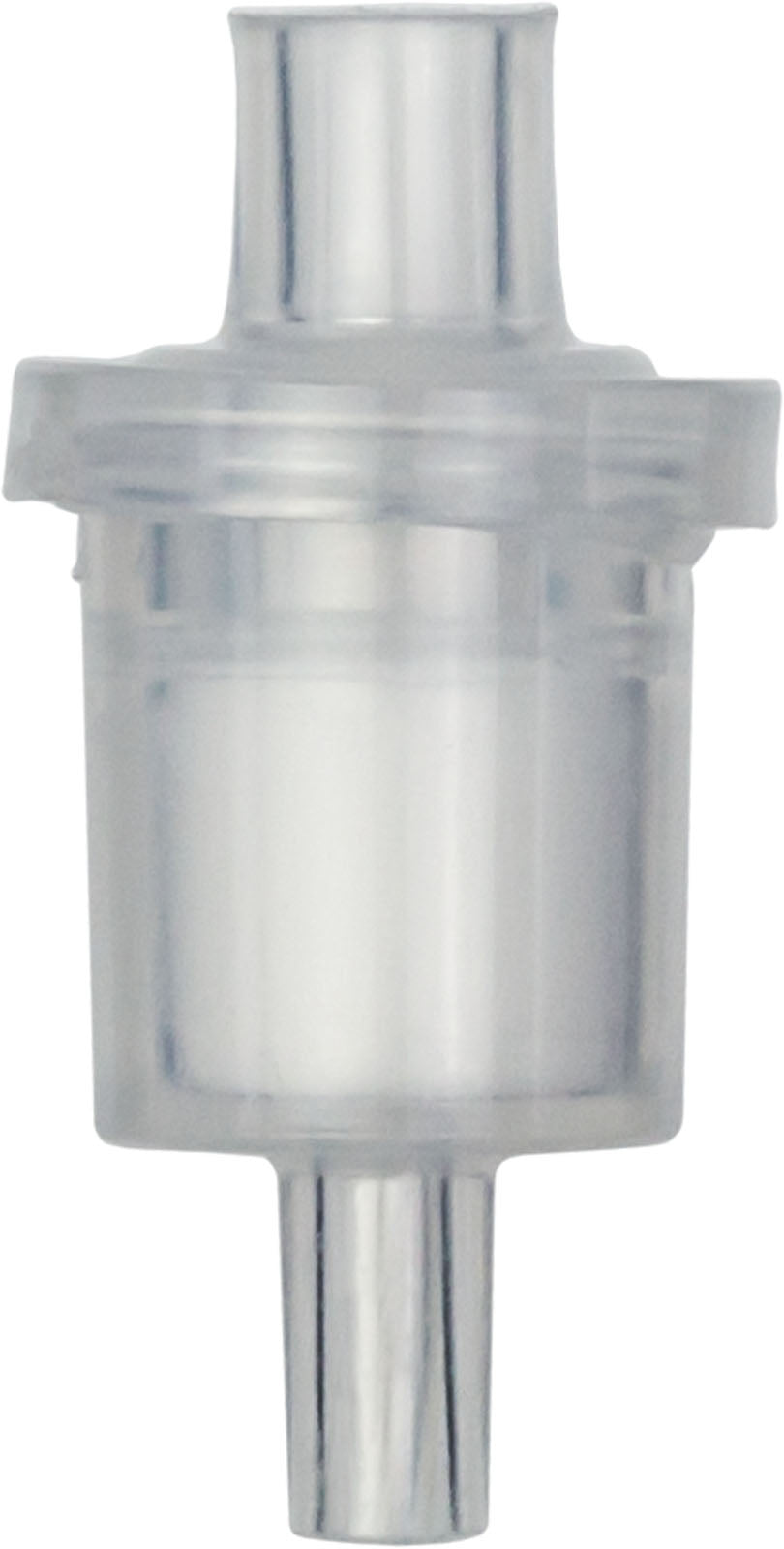

CHROMAFIX cartridges are PP cartridges with PE filter elements. Three different sizes with different adsorbent weights - Small (0.4 mL), Medium (0.8 mL), Large (1.8 mL). Especially suited for convenient solid phase extraction of small sample volumes. Female Luer fitting at the inlet, male Luer tip as exit. Offers alternative way of handling using positive pressure by syringes or peristaltic pumps.
