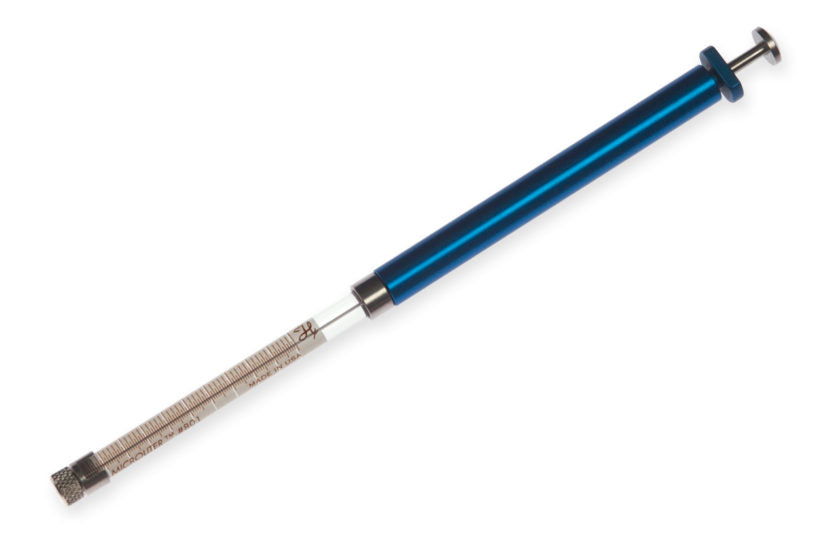

Hamilton 5 µL Microliter Syringe

Please Login or Register to see price.
SKU: 7641-01

Hamilton 5 µL Microliter Syringe

The 800 series syringes are the reinforced plunger version of the original 700 series syringes. Attached to the flange of the syringe is a blue Syringe Holder. The Syringe Holder provides a spot to hold the syringe that will not heat up the barrel causing dispense inaccuracies. Additionally it provides support to small volume plungers that are prone to bending during injection. This series of syringes is ideal for dispensing volumes from 0.5 μL up to 250 μL. A variety of different terminations and needle options are available in this series.

Volume 5 µL
Syringe Type Microliter
Syringe Series 800
Termination Removable Needle (RN)
Needle Small RN
Gauge No Needle Included
Point Style No Needle Included
Needle Length No Needle Included
Fluid Path SST, borosilicate glass
Autoclavable Yes
Gas Sterilizable Yes
Pressure 2000 psig (137.9 bar)
Maximum Temperature 115°C / 239°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.014 inches (0.343 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Std Needle Dead Volume N/A
Sales Quantity 1 syringe per pack
