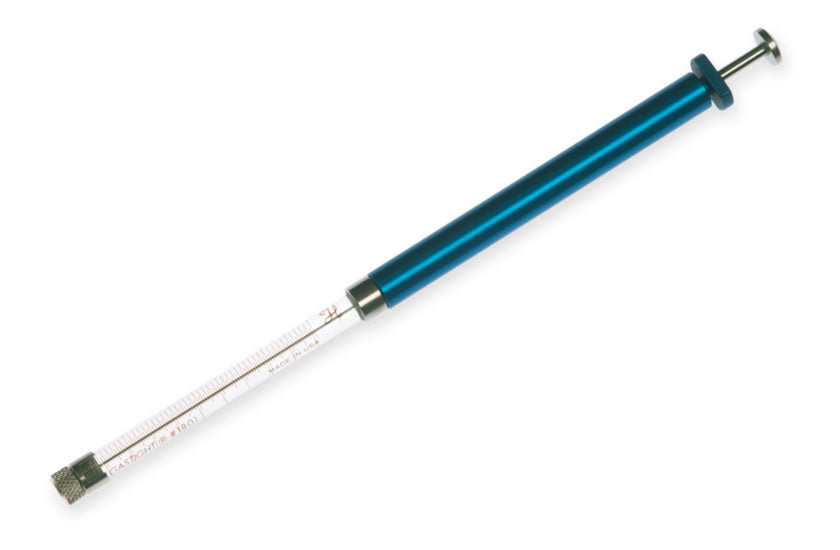

Hamilton 50 µL Gastight SyringePlease Login or Register to see price.
Shipping calculated at checkout.
The 1800 series syringes are the reinforced plunger version of the 1700 series syringes. Attached to the flange of the syringe is a blue Syringe Holder. The Syringe Holder provides a spot to hold the syringe that will not heat up the barrel causing dispense inaccuracies. Additionally it provides support to small volume plungers that are prone to bending during injections. This series of syringes is ideal for dispensing volumes from 1 µL up to 250 µL.
|Termination||Removable Needle (RN)|
|Gauge||No Needle Included|
|Point Style||No Needle Included|
|Needle Length||No Needle Included|
|Fluid Path||SST, borosilicate glass, PTFE|
|Pressure||1000 psig (68.9 bar)|
|Maximum Temperature||115°C / 239°F|
|Minimum Temperature||10°C / 50°F|
|Barrel Inner Diameter||0.029 inches (0.729 mm)
0.041 inches (1.03 mm)
|Barrel Outer Diameter||0.305 inches (7.75 mm)|
|Std Needle Dead Volume||N/A|
|Sales Quantity||1 syringe per pack|
