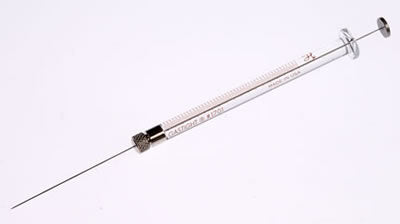

10 µL, Model 1701 RN Agilent SYR, Small Removable NDL, 26s ga, 1.71 in, point style 2

Please Login or Register to see price.
SKU: 80011

10 µL, Model 1701 RN Agilent SYR, Small Removable NDL, 26s ga, 1.71 in, point style 2

Hamilton maintains a large catalog of replacement syringes for the most popular gas chromatography autosamplers. Our syringes are handmade with an unmatched attention to detail. The manufacturing process and quality assurance procedures ensure that every syringe we sell will provide superior accuracy and precision as well as cycle life.

Volume 10 µL
Syringe Type Gastight
Syringe Series 1700
Termination Removable Needle (RN)
Needle Small RN
Gauge 26s gauge
Point Style 2
Needle Length 1.71 inch (43.4 mm)
Fluid Path SST, borosilicate glass, PTFE
Autoclavable Yes
Gas Sterilizable Yes
Pressure 1000 psig (68.9 bar)
Maximum Temperature 115°C / 239°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.018 inches (0.460 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Needle Inner Diameter 0.005 inches (0.13 mm)
Needle Outer Diameter 0.0187 inches (0.47 mm)
Std Needle Dead Volume 0.55 μL
Sales Quantity 1 syringe per pack
