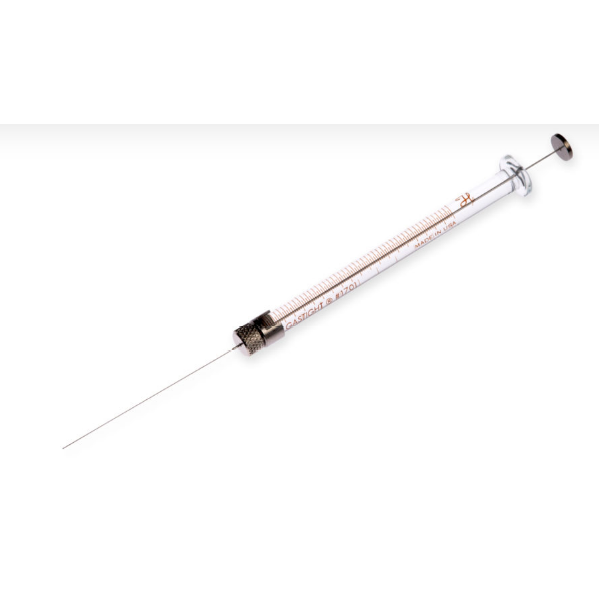

Hamilton 10 µL, Small Removable NDL, 32 ga, 2 inch, point style 3
Please Login or Register to see price.Shipping calculated at checkout.
SKU: 80014
The 1700 series syringes are the Gastight version of the original 700 series syringes. This series of syringes is ideal for dispensing volumes from 1 μL up to 500 μL. A variety of different terminations and needle options are available in this series.
| Volume | 10 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Removable Needle (RN) |
| Needle | Small RN |
| Gauge | 32 gauge |
| Point Style | 3 |
| Needle Length | 2 inch (51 mm) |
| Fluid Path | SST, borosilicate glass, PTFE |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Temperature | 115°C / 239°F |
| Minimum Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.018 inches (0.460 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Needle Inner Diameter | 0.0045 inches (0.11 mm) |
| Needle Outer Diameter | 0.00925 inches (0.24 mm) |
| Std Needle Dead Volume | 0.47 µL |
| Sales Quantity | 1 syringe per pack |
