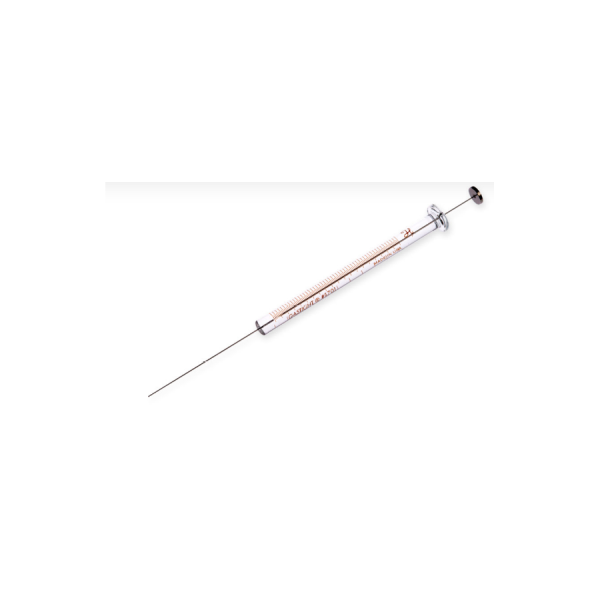

Hamilton 10 µL, N SYR, Cemented NDL, 26 ga, 2 inch, point style 3

Please Login or Register to see price.
SKU: 80085

Hamilton 10 µL, N SYR, Cemented NDL, 26 ga, 2 inch, point style 3

The 1700 series syringes are the Gastight version of the original 700 series syringes. This series of syringes is ideal for dispensing volumes from 1 μL up to 500 μL. A variety of different terminations and needle options are available in this series.

Volume 10 µL
Syringe Type Gastight
Syringe Series 1700
Termination Cemented Needle (N)
Needle Cemented Needle
Gauge 26 gauge
Point Style 3
Needle Length 2 inch (51 mm)
Fluid Path SST, borosilicate glass, PTFE
Autoclavable No
Gas Sterilizable Yes
Pressure 1000 psig (68.9 bar)
Maximum Temperature 50°C / 122°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.018 inches (0.460 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Needle Inner Diameter 0.0102 inches (0.26 mm)
Needle Outer Diameter 0.0187 inches (0.47 mm)
Std Needle Dead Volume 2.70 µL
Sales Quantity 1 syringe per pack
