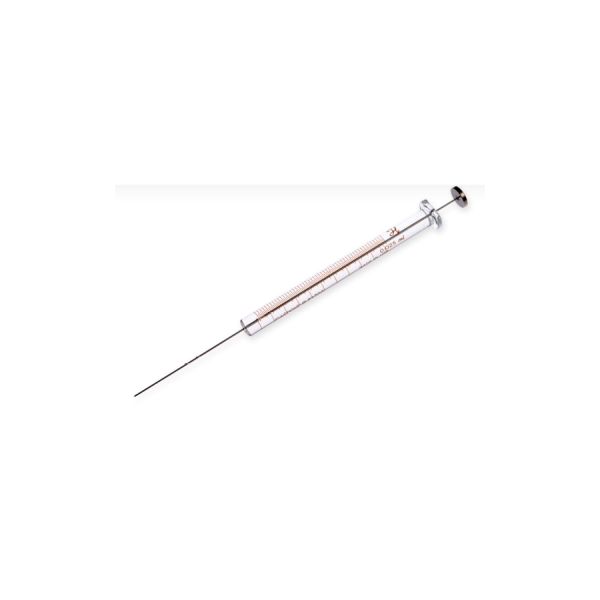

Hamilton 25 µL,RN SYR, 22s ga, 2 inch, point style 2

Please Login or Register to see price.
SKU: 80230

Hamilton 25 µL,RN SYR, 22s ga, 2 inch, point style 2

Split/splitless injection consists of a heated chamber with a glass liner into which the sample is injected through the septum. A microsyringe is used to inject the sample through a rubber septum into a flash vaporizer chamber at the head of the column. The sample vaporizes to form a mixture of carrier gas, vaporized solvent and vaporized analytes. In the split mode, only a proportion of this mixture reaches the column but most exits through the split outlet. This avoids overloading the column. In the splitless mode, the split vent is closed so that the vaporized analyte passes onto the column. This mode is more sensitive and adequate for trace analysis.

Volume 25 µL
Syringe Type Gastight
Syringe Series 1700
Termination Removable Needle (RN)
Needle Small RN
Gauge 22s gauge
Point Style 2
Needle Length 2 inch (51 mm)
Fluid Path SST, borosilicate glass, PTFE
Autoclavable Yes
Gas Sterilizable Yes
Pressure 1000 psig (68.9 bar)
Maximum Temperature 115°C / 239°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.029 inches (0.729 mm)
Barrel Outer Diameter 0.305 inches (7.75 mm)
Needle Inner Diameter 0.0059 inches (0.15 mm)
Needle Outer Diameter 0.0283 inches (0.72 mm)
Std Needle Dead Volume 1.13 µL
Sales Quantity 1 syringe per pack
