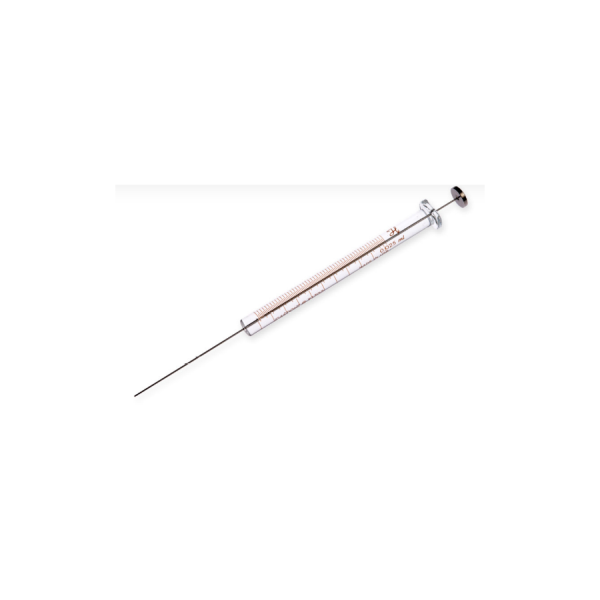

Hamilton 25 µL, N SYR, 22s ga, 2 inch, point style 3T

Please Login or Register to see price.
SKU: 80250

Hamilton 25 µL, N SYR, 22s ga, 2 inch, point style 3T

The needles on Thin Layer Chromatography (TLC) syringes are coated from the point for 3/4” with a PTFE-coating. The coating reduces the surface tension between the needle and the liquid making it ideal for reproducible sample spotting.

Volume 25 µL
Syringe Type Gastight
Syringe Series 1700
Termination Cemented Needle (N)
Needle Cemented Needle
Gauge 22s gauge
Point Style 3T
Needle Length 2 inch (51 mm)
Fluid Path SST, borosilicate glass, PTFE
Autoclavable No
Gas Sterilizable Yes
Pressure 1000 psig (68.9 bar)
Maximum Temperature 50°C / 122°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.029 inches (0.729 mm)
Barrel Outer Diameter 0.305 inches (7.75 mm)
Needle Inner Diameter 0.0059 inches (0.15 mm)
Needle Outer Diameter 0.0283 inches (0.72 mm)
Std Needle Dead Volume 1.13 µL
Sales Quantity 1 syringe per pack
