Hamilton 10 µL Microliter Syringe, Removable Needle, 26s Gauge, 2 inch, Point Style 2

Please Login or Register to see price.
SKU: 80370

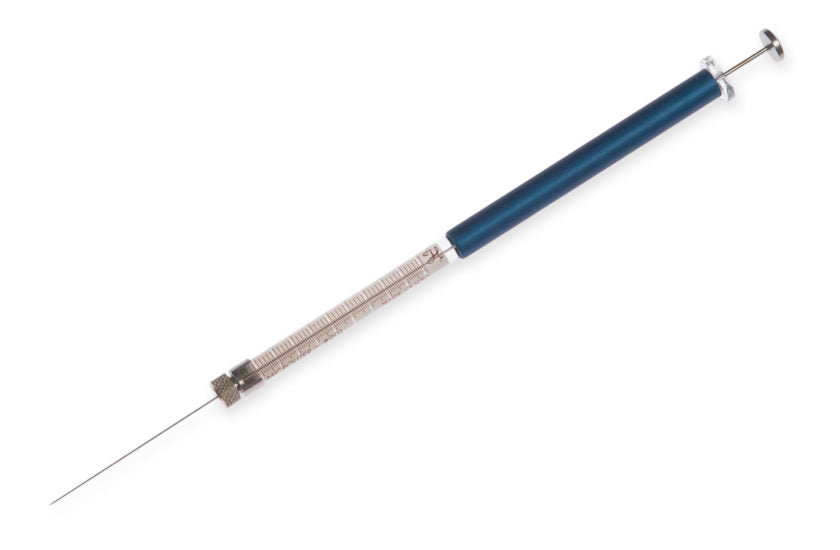

Hamilton 10 µL Microliter Syringe, Removable Needle, 26s Gauge, 2 inch, Point Style 2

The 900 series syringe is the economical version of the 800 series syringe. This series of syringes is ideal for dispensing volumes from 0.5 μL up to 10 μL. The syringe holder is permanently attached to the syringe barrel. This reduces the initial cost of the syringe but eliminates the possibility of replacement components.

Volume 10 µL
Syringe Type Microliter
Syringe Series 900
Termination Removable Needle (RN)
Needle Small RN
Gauge 26s gauge
Point Style 2
Needle Length 2 inch (51 mm)
Fluid Path SST, borosilicate glass
Autoclavable Yes
Gas Sterilizable Yes
Pressure 2000 psig (137.9 bar)
Maximum Temperature 115°C / 239°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.019 inches (0.485 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Needle Inner Diameter 0.005 inches (0.13 mm)
Needle Outer Diameter 0.0187 inches (0.47 mm)
Std Needle Dead Volume 0.64 µL
Sales Quantity 1 syringe per pack
