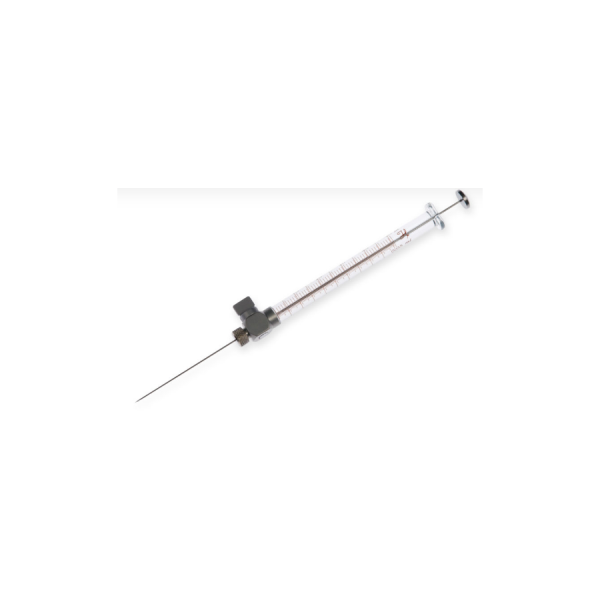

Hamilton 50 µL, SL SYR, Large Removable NDL, 22s ga, 2 in, point style 2
Please Login or Register to see price.Shipping calculated at checkout.
SKU: 80956
The 1700 series syringes are the Gastight version of the original 700 series syringes. This series of syringes is ideal for dispensing volumes from 1 μL up to 500 μL. A variety of different terminations and needle options are available in this series.
Volume | 50 µL |
---|---|
Syringe Type | Gastight |
Syringe Series | 1700 |
Termination | Sample Lock (SL) |
Needle | Large RN |
Gauge | 22s gauge |
Point Style | 2 |
Needle Length | 2 inch (51 mm) |
Fluid Path | SST, borosilicate glass, PTFE |
Autoclavable | No |
Gas Sterilizable | Yes |
Pressure | 1000 psig (68.9 bar) |
Maximum Temperature | 115°C / 239°F |
Minimum Temperature | 10°C / 50°F |
Barrel Inner Diameter | 0.041 inches (1.03 mm) |
Barrel Outer Diameter | 0.305 inches (7.75 mm) |
Needle Inner Diameter | 0.0059 inches (0.15 mm) |
Needle Outer Diameter | 0.0283 inches (0.72 mm) |
Std Needle Dead Volume | 1.13 µL |
Sales Quantity | 1 syringe per pack |
