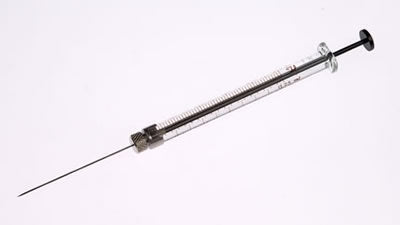

Hamilton 250 µL, RN Syringe, 22s gauge, 2 inch, point style 2
Please Login or Register to see price.Shipping calculated at checkout.
SKU: 81130
The 1700 series syringes are the Gastight version of the original 700 series syringes. This series of syringes is ideal for dispensing volumes from 1 μL up to 500 μL. A variety of different terminations and needle options are available in this series.
Volume | 250 µL |
---|---|
Syringe Type | Gastight |
Syringe Series | 1700 |
Termination | Removable Needle (RN) |
Needle | Large RN |
Gauge | 22s gauge |
Point Style | 2 |
Needle Length | 2 inch (51 mm) |
Fluid Path | SST, borosilicate glass, PTFE |
Autoclavable | Yes |
Gas Sterilizable | Yes |
Pressure | 500 psig (34.5 bar) |
Maximum Temperature | 115°C / 239°F |
Minimum Temperature | 10°C / 50°F |
Barrel Inner Diameter | 0.091 inches (2.30 mm) |
Barrel Outer Diameter | 0.305 inches (7.75 mm) |
Needle Inner Diameter | 0.0059 inches (0.15 mm) |
Needle Outer Diameter | 0.0283 inches (0.72 mm) |
Std Needle Dead Volume | 1.13 µL |
Sales Quantity | 1 syringe per pack |
