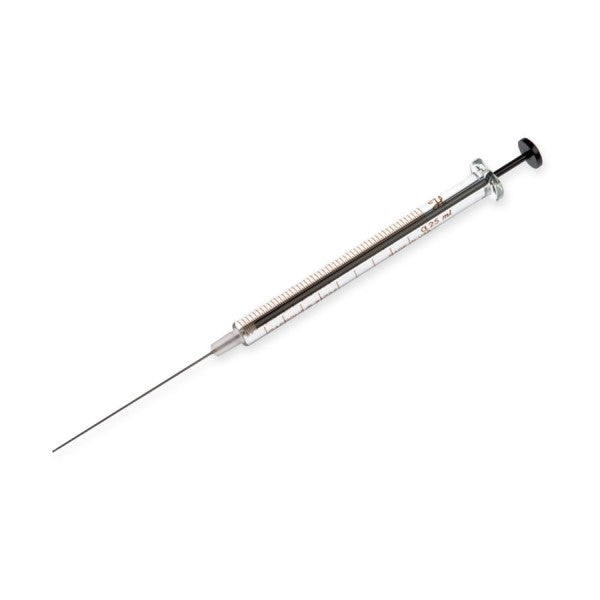

Hamilton 1725 N 250µL (22/51/3)
Please Login or Register to see price.Shipping calculated at checkout.
SKU: 81185
The 1700 series syringes are the Gastight version of the original 700 series syringes. This series of syringes is ideal for dispensing volumes from 1 μL up to 500 μL. A variety of different terminations and needle options are available in this series.
Volume | 250 µL |
---|---|
Syringe Type | Gastight |
Syringe Series | 1700 |
Termination | Luer Tip Cemented Needle (LTN) |
Needle | Cemented Needle |
Gauge | 22 gauge |
Point Style | 3 |
Needle Length | 2 inch (51 mm) |
Fluid Path | SST, borosilicate glass, PTFE |
Autoclavable | No |
Gas Sterilizable | Yes |
Pressure | 500 psig (34.5 bar) |
Maximum Temperature | 50°C / 122°F |
Minimum Temperature | 10°C / 50°F |
Barrel Inner Diameter | 0.091 inches (2.30 mm) |
Barrel Outer Diameter | 0.305 inches (7.75 mm) |
Needle Inner Diameter | 0.0161 inches (0.41 mm) |
Needle Outer Diameter | 0.0283 inches (0.72 mm) |
Std Needle Dead Volume | 6.81 µL |
Sales Quantity | 1 syringe per pack |
