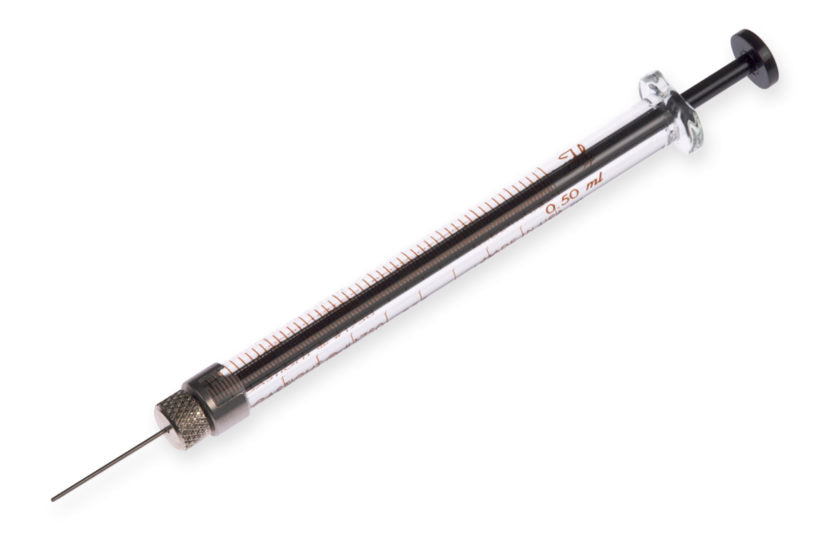

Hamilton 500 µL Valco VISF-1 Syringe, Removable Needle, 22 Gauge, 0.75 inch, Point Style 3

Please Login or Register to see price.
SKU: 81231

Hamilton 500 µL Valco VISF-1 Syringe, Removable Needle, 22 Gauge, 0.75 inch, Point Style 3

The 1700 series syringes are the Gastight version of the original 700 series syringes. This series of syringes is ideal for dispensing volumes from 1 μL up to 500 μL. A variety of different terminations and needle options are available in this series.

Volume 500 µL
Syringe Type Gastight
Syringe Series 1700
Termination Removable Needle (RN)
Needle Large RN
Gauge 22 gauge
Point Style 3
Needle Length 0.75 inch (19.1 mm)
Fluid Path SST, borosilicate glass, PTFE
Autoclavable Yes
Gas Sterilizable Yes
Pressure 700 psig (48.3 bar)
Maximum Temperature 115°C / 239°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.128 inches (3.26 mm)
Barrel Outer Diameter 0.305 inches (7.75 mm)
Needle Inner Diameter 0.0161 inches (0.41 mm)
Needle Outer Diameter 0.0283 inches (0.72 mm)
Std Needle Dead Volume 2.55 µL
Sales Quantity 1 syringe per pack
