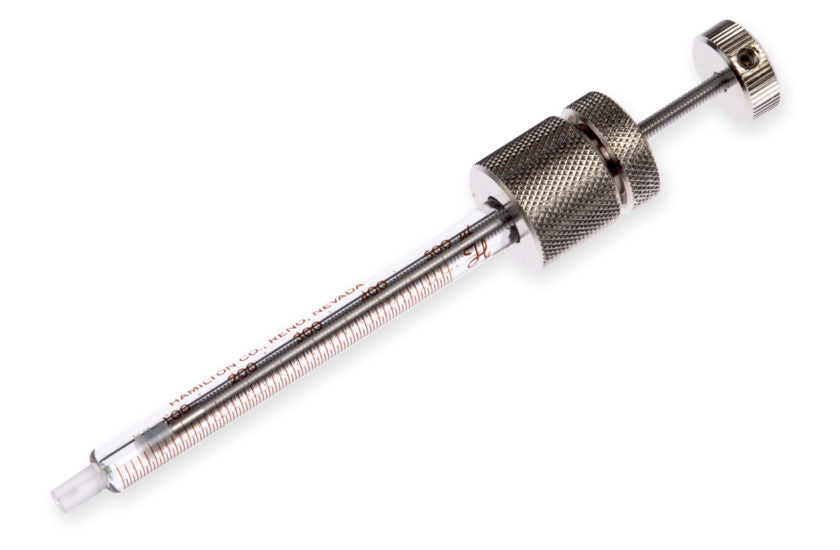

Hamilton 500 µL Syringe, Luer Tip, Threaded Plunger
Please Login or Register to see price.Shipping calculated at checkout.
SKU: 81242
The 1700 series syringes are the Gastight version of the original 700 series syringes. This series of syringes is ideal for dispensing volumes from 1 μL up to 500 μL. A variety of different terminations and needle options are available in this series.
| Volume | 500 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Luer Tip (LT) |
| Needle | Kel-F Hub |
| Gauge | No Needle Included |
| Point Style | No Needle Included |
| Needle Length | No Needle Included |
| Fluid Path | Borosilicate glass, PTFE |
| Autoclavable | Yes to 115 °C |
| Gas Sterilizable | Yes |
| Pressure | 700 psig (48.3 bar) |
| Maximum Temperature | 115°C / 239°F |
| Minimum Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.128 inches (3.26 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Volume per rotation | 5.29 µL |
| Std Needle Dead Volume | N/A |
| Sales Quantity | 1 syringe per pack |
