Hamilton 1005 LTN 5ML SYR (22/51/3)

Please Login or Register to see price.
SKU: 81516

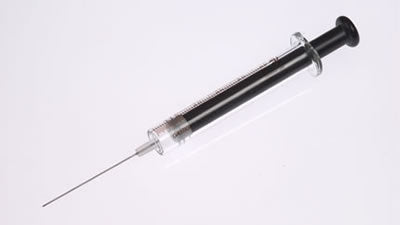

Hamilton 1005 LTN 5ML SYR (22/51/3)

The 1000 series syringes are a mid-volume Gas tight syringe. This series of syringes is ideal for dispensing volumes from 1 mL up to 100 mL. A variety of different terminations and needle options are available in this series.

Volume 5 mL
Syringe Type Gastight
Syringe Series 1000
Termination Luer Tip Cemented Needle (LTN)
Needle Cemented Needle
Gauge 22 gauge
Point Style 3
Needle Length 2 inch (51 mm)
Fluid Path SST, borosilicate glass, PTFE
Autoclavable No
Gas Sterilizable Yes
Pressure 200 psig (13.8 bar)
Maximum Temperature 50°C / 122°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.406 inches (10.3 mm)
Barrel Outer Diameter 0.530 inches (13.5 mm)
Needle Inner Diameter 0.0161 inches (0.41 mm)
Needle Outer Diameter 0.0283 inches (0.72 mm)
Std Needle Dead Volume 6.81 µL
Sales Quantity 1 syringe per pack
