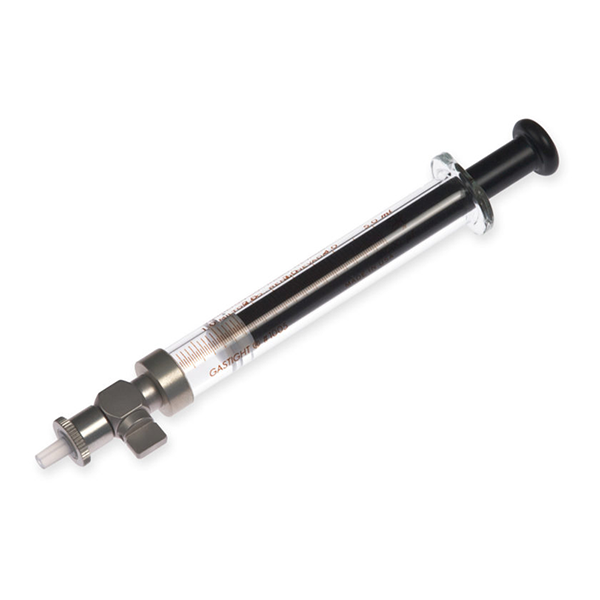

1005 SLPT 5ml Purge & Trap Syringe

Please Login or Register to see price.
Shipping calculated at checkout.
SKU: 81570

1005 SLPT 5ml Purge & Trap Syringe

These syringes are ideal for purge and trap applications because the plunger can be easily removed to load water samples into the syringe barrel. Internal standard or a surrogate spike can be added through the twist valve with a 10 µL syringe. The sample syringe can also be connected directly to the purge and trap valve via the integral male luer fitting. Hamilton 5 mL and 25 mL Purge and Trap syringes were designed for the analysis of drinking water samples according to EPA purge and trap concentration techniques (see EPA methods 502.1, 502.2, 503.1, 524.1, and 524.2).



Volume 5 mL
Syringe Type Gastight
Syringe Series 1000
Termination Special
Needle Large RN or LT
Gauge No Needle Included
Point Style No Needle Included

Additional specifications

Needle Length No Needle Included
Fluid Path Borosilicate glass, PTFE
Autoclavable Yes
Gas Sterilizable Yes
Pressure 200 psig (13.8 bar)
Maximum Temperature 115°C / 239°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.406 inches (10.3 mm)
Barrel Outer Diameter 0.530 inches (13.5 mm)
Std Needle Dead Volume N/A
Sales Quantity 1 syringe per pack
