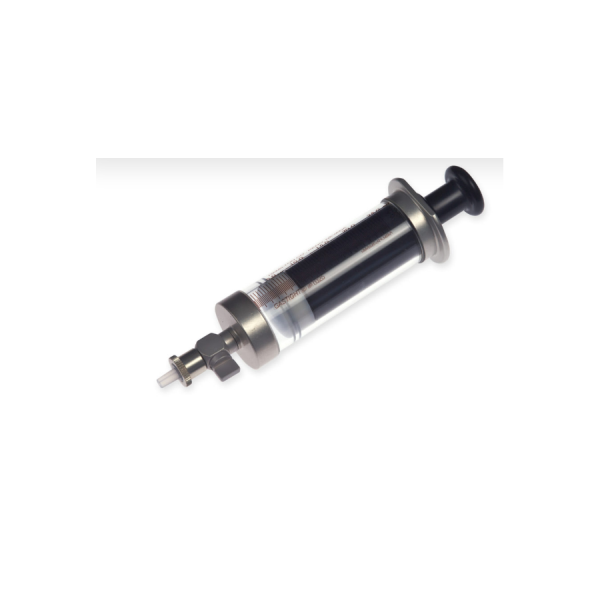

These syringes are ideal for Purge and Trap applications because you can easily remove the syringe plunger and load water samples into the syringe barrel. You can add an internal standard or surrogate sample directly to your sample through the twist valve with a 10 µL syringe. You can also connect the sample syringe directly to the Purge and Trap valve via the integral male luer fitting.
Hamilton 5 and 25 mL Purge and Trap syringes were designed for the analysis of drinking water samples according to EPA purge and trap concentration techniques (see EPA methods 502.1, 502.2, 503.1, 524.1 and 524.2).
|Needle||Large RN or LT|
|Gauge||No Needle Included|
|Point Style||No Needle Included|
|Needle Length||No Needle Included|
|Fluid Path||Borosilicate glass, PTFE|
|Pressure||100 psig (6.9 bar)|
|Maximum Temperature||80°C / 176°F|
|Minimum Temperature||10°C / 50°F|
|Barrel Inner Diameter||0.907 inches (23.0 mm)|
|Barrel Outer Diameter||1.07 inches (27.1 mm)|
|Std Needle Dead Volume||N/A|
|Sales Quantity||1 syringe per pack|
