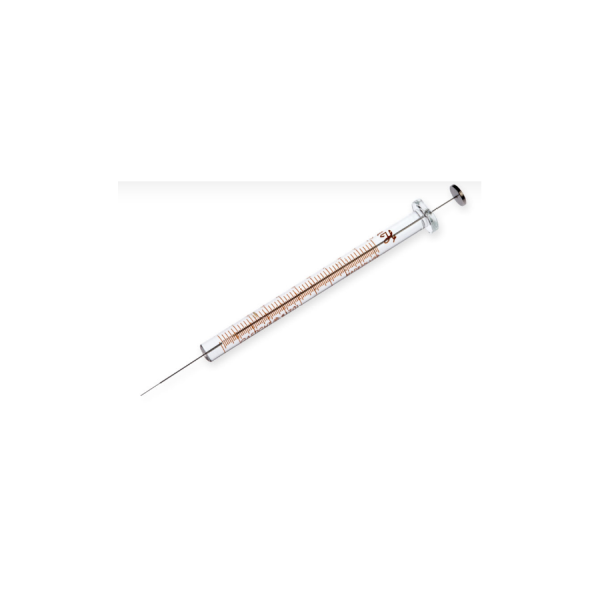

Hamilton 10 µL, N Gel Loading SYR, 0.4 mm, 1 inch, point style 3

Please Login or Register to see price.
Shipping calculated at checkout.
SKU: 84504

Hamilton 10 µL, N Gel Loading SYR, 0.4 mm, 1 inch, point style 3

Gel Loading Syringes are designed with small gauge needles that a perfect for loading the lanes on an electrophoresis gel. The most common application is for multiplex DNA sequencing methodologies. Rapidly transfer 1, 8, or 12 samples to sequencing gels, MICROTITER® plates or nylon membranes. Accurately dispense from 0.2 to 10 µL of sample per syringe simultaneously. The fixed syringes offer 9 mm needle spacing and the adjustable width syringe goes from 9 – 10.8 mm. An settable volume stop allows for faster, more accurate reloading and excellent reproducibility.

Volume 10 µL
Syringe Type Gastight
Syringe Series 1700
Termination Cemented Needle (N)
Needle Cemented Needle
Gauge 0.4 mm
Point Style 3
Needle Length 1 inch (25.4 mm)
Fluid Path SST, borosilicate glass, PTFE
Autoclavable No
Gas Sterilizable Yes
Pressure 1000 psig (68.9 bar)
Maximum Temperature 50°C / 122°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.018 inches (0.460 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Needle Inner Diameter 0.004 inches (0.10 mm)
Needle Outer Diameter 0.016 inches (0.41 mm)
Std Needle Dead Volume 0.88 µL
Sales Quantity 1 syringe per pack
