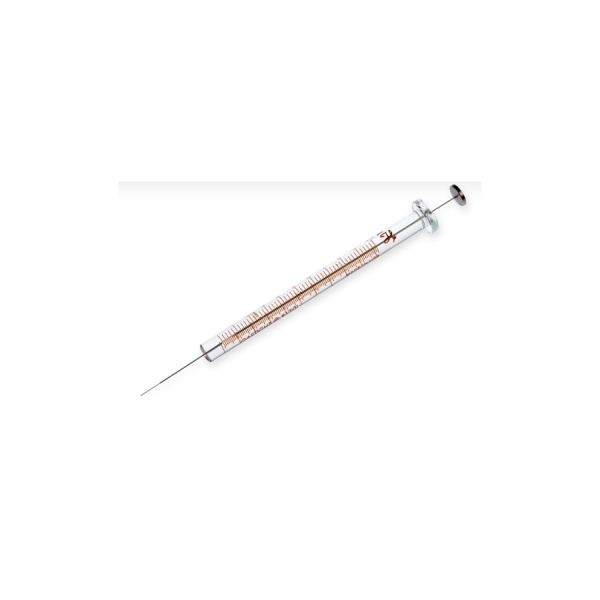

Hamilton 10 µL, Gel Loading SYR, 0.3 mm, 1 inch, point style 3
Please Login or Register to see price.Shipping calculated at checkout.
SKU: 84505
Gel Loading Syringes are designed with small gauge needles that a perfect for loading the lanes on an electrophoresis gel. The most common application is for multiplex DNA sequencing methodologies. Rapidly transfer 1, 8, or 12 samples to sequencing gels, MICROTITER® plates or nylon membranes. Accurately dispense from 0.2 to 10 µL of sample per syringe simultaneously. The fixed syringes offer 9 mm needle spacing and the adjustable width syringe goes from 9 – 10.8 mm. An settable volume stop allows for faster, more accurate reloading and excellent reproducibility.
Volume | 10 µL |
---|---|
Syringe Type | Gastight |
Syringe Series | 1700 |
Termination | Cemented Needle (N) |
Needle | Cemented Needle |
Gauge | 0.3 mm |
Point Style | 3 |
Needle Length | 1 inch (25.4 mm) |
Fluid Path | SST, borosilicate glass, PTFE |
Autoclavable | No |
Gas Sterilizable | Yes |
Pressure | 1000 psig (68.9 bar) |
Maximum Temperature | 50°C / 122°F |
Minimum Temperature | 10°C / 50°F |
Barrel Inner Diameter | 0.018 inches (0.460 mm) |
Barrel Outer Diameter | 0.260 inches (6.60 mm) |
Needle Inner Diameter | 0.0025 inches (0.064 mm) |
Needle Outer Diameter | 0.010 inches (0.3 mm) |
Std Needle Dead Volume | 0.35 µL |
Sales Quantity | 1 syringe per pack |
