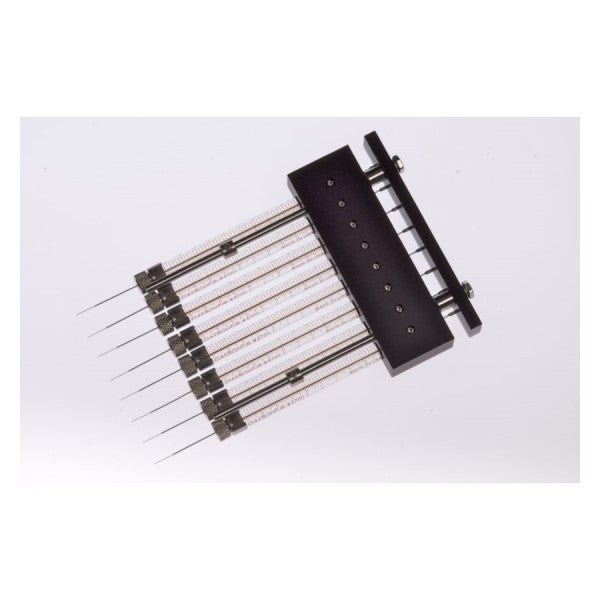

Hamilton 10 µL, Model 1701 N 8 Channel Gel Loading Syringe
Please Login or Register to see price.The Hamilton Multi-Channel Gel Loading Syringe (MCGLS) easily and accurately transfers 8 or 12 DNA samples to sequencing gels for electrophoresis, to another microwell plate for duplicate analysis, or to nylon membranes for visualization. Samples can be easily transferred by microwell plate column using the 8-channel pipette, or by row using the 12-channel pipette. A single DNA Syringe is also available for individual transfers. Three different needle specifications allow either loading of samples into thin sequencing gel wells that are 0.2 mm (.008 in), 0.3 mm (.012 in) or 0.4 mm (.016 in) or larger, or directly onto the top of the sequencing gel. The standard needle spacing of 9 mm (.354 in) allows spotting between the gel plates using most square or sharkstooth combs with a microwell format. An adjustable stop collar on the MCGLS allows you to pre-set the volume anywhere between 0.2 to 10 µL.
Volume | 10 µL |
---|---|
Syringe Type | Gastight |
Syringe Series | 1700 |
Termination | Cemented Needle (N) |
Needle | Cemented Needle |
Gauge | 0.2 mm |
Point Style | 3 |
Needle Length | 1 inch (25.4 mm) |
Fluid Path | SST, borosilicate glass, PTFE |
Autoclavable | No |
Gas Sterilizable | Yes |
Pressure | 1000 psig (68.9 bar) |
Maximum Temperature | 50°C / 122°F |
Minimum Temperature | 10°C / 50°F |
Barrel Inner Diameter | 0.018 inches (0.460 mm) |
Barrel Outer Diameter | 0.260 inches (6.60 mm) |
Needle Inner Diameter | 0.007 Inches (0.18 mm) |
Needle Outer Diameter | 0.00787 inches (0.2 mm) |
Std Needle Dead Volume | 0.64 µL |
Sales Quantity | 1 syringe per pack |
Channels | 8-channel |
