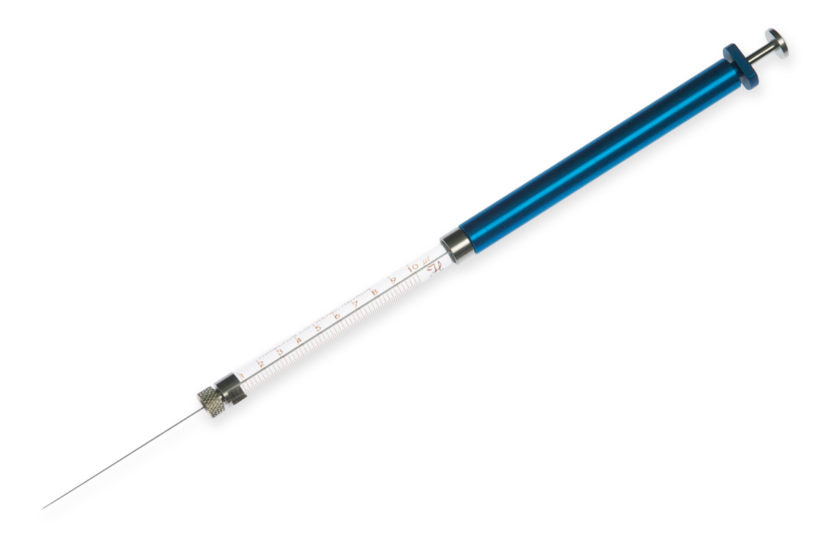

Hamilton 100 µL Gastight Syringe, Small Removable Needle, 22s Gauge, 2 inch, Point Style 2
Please Login or Register to see price.Shipping calculated at checkout.
SKU: 84886
The 1800 series syringes are the reinforced plunger version of the 1700 series syringes. Attached to the flange of the syringe is a blue Syringe Holder. The Syringe Holder provides a spot to hold the syringe that will not heat up the barrel causing dispense inaccuracies. Additionally it provides support to small volume plungers that are prone to bending during injections. This series of syringes is ideal for dispensing volumes from 1 µL up to 250 µL.
Volume | 100 µL |
---|---|
Syringe Type | Gastight |
Syringe Series | 1800 |
Termination | Removable Needle (RN) |
Needle | Small RN |
Gauge | 22s gauge |
Point Style | 2 |
Needle Length | 2 inch (51 mm) |
Fluid Path | SST, borosilicate glass, PTFE |
Autoclavable | Yes |
Gas Sterilizable | Yes |
Pressure | 1000 psig (68.9 bar) |
Maximum Temperature | 115°C / 239°F |
Minimum Temperature | 10°C / 50°F |
Barrel Inner Diameter | 0.057 inches (1.46 mm) |
Barrel Outer Diameter | 0.305 inches (7.75 mm) |
Needle Inner Diameter | 0.0059 inches (0.15 mm) |
Needle Outer Diameter | 0.0283 inches (0.72 mm) |
Std Needle Dead Volume | 1.13 µL |
Sales Quantity | 1 syringe per pack |
