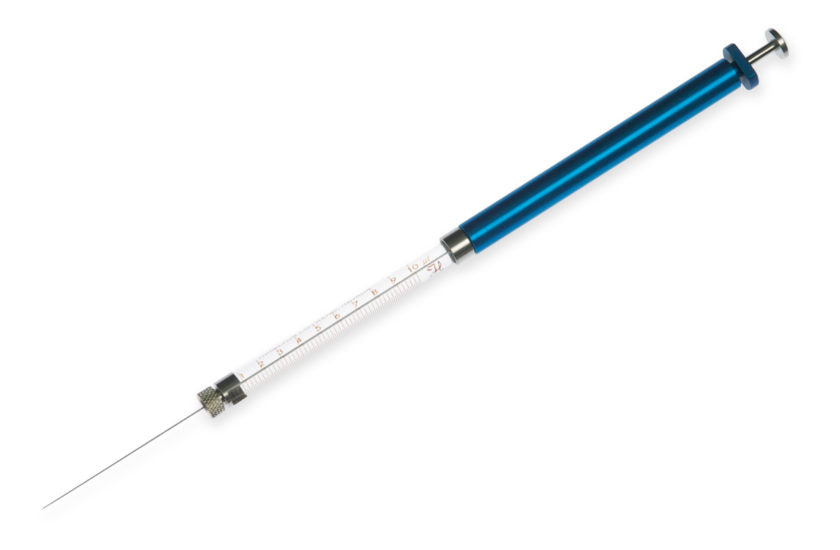

Hamilton 250 µL Syringe, Large Removable Needle, 22s Gauge, 2 inch, Point Style 2

Please Login or Register to see price.
Shipping calculated at checkout.
SKU: 84889

Hamilton 250 µL Syringe, Large Removable Needle, 22s Gauge, 2 inch, Point Style 2

The 1800 series syringes are the reinforced plunger version of the 1700 series syringes. Attached to the flange of the syringe is a blue Syringe Holder. The Syringe Holder provides a spot to hold the syringe that will not heat up the barrel causing dispense inaccuracies. Additionally it provides support to small volume plungers that are prone to bending during injections. This series of syringes is ideal for dispensing volumes from 1 µL up to 250 µL.

Volume 250 µL
Syringe Type Gastight
Syringe Series 1800
Termination Removable Needle (RN)
Needle Large RN
Gauge 22s gauge
Point Style 2
Needle Length 2 inch (51 mm)
Fluid Path SST, borosilicate glass, PTFE
Autoclavable Yes
Gas Sterilizable Yes
Pressure 500 psig (34.5 bar)
Maximum Temperature 115°C / 239°F
Minimum Temperature 10°C / 50°F
Barrel Inner Diameter 0.091 inches (2.30 mm)
Barrel Outer Diameter 0.305 inches (7.75 mm)
Needle Inner Diameter 0.0059 inches (0.15 mm)
Needle Outer Diameter 0.0283 inches (0.72 mm)
Std Needle Dead Volume 1.13 µL
Sales Quantity 1 syringe per pack
