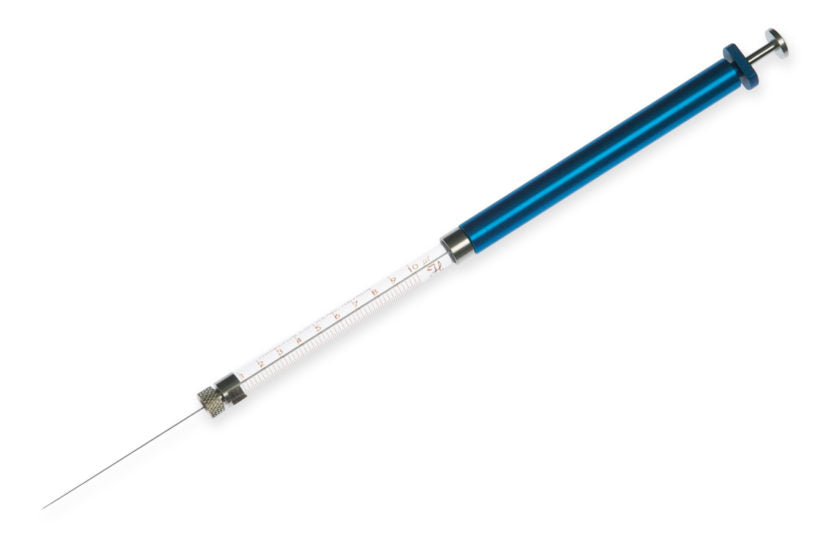

The 1800 series syringes are the reinforced plunger version of the 1700 series syringes. Attached to the flange of the syringe is a blue Syringe Holder. The Syringe Holder provides a spot to hold the syringe that will not heat up the barrel causing dispense inaccuracies. Additionally it provides support to small volume plungers that are prone to bending during injections. This series of syringes is ideal for dispensing volumes from 1 µL up to 250 µL.
Syringes for U6K valve come with a 25s gauge needle specifically designed for this valve.
|Termination||Removable Needle (RN)|
|Needle Length||1.97 inch (50 mm)|
|Fluid Path||SST, borosilicate glass, PTFE|
|Pressure||1000 psig (68.9 bar)|
|Maximum Temperature||115°C / 239°F|
|Minimum Temperature||10°C / 50°F|
|Barrel Inner Diameter||0.057 inches (1.46 mm)|
|Barrel Outer Diameter||0.305 inches (7.75 mm)|
|Needle Inner Diameter||0.007 Inches (0.18 mm)|
|Needle Outer Diameter||0.02 inches (0.508 mm)|
|Std Needle Dead Volume||0.91 µL|
|Sales Quantity||1 syringe per pack|
