S1000 1L Syr TLL

Please Login or Register to see price.
Shipping calculated at checkout.
SKU: 86312

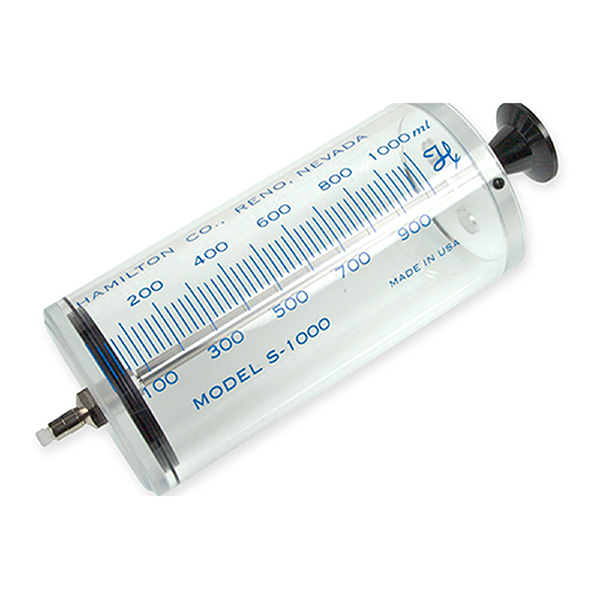

S1000 1L Syr TLL

S1000 1L Syringe TLL

The Super Syringe, a large volume, clear acrylic syringe, is available in volumes from 0.5 liters to 2.0 liters for
a variety of applications including gas sampling, preparing gas standards, air pollution sampling, EPA sample
testing, calibration of reservoirs, pneumographs, spirometers, and pulmonary research. The Super Syringe is
available with two choices of adapters: PTFE luer lock or tracheal.

The Super Syringe is accurate to ±1% of its total volume. The syringe is pressure rated to 30 psig, with a
maximum temperature range of 50 °C (122 °F). The PTFE luer lock (TLL) model accepts a variety of Hamilton
stainless steel needles, fittings, valves, adapters, and PTFE tube assemblies.

Volume 1 L
Syringe Type Gastight
Syringe Series Super Syringe
Termination PTFE Luer Lock (TLL)
Needle Metal (N) or Kel-F
Gauge No Needle Included
Point Style No Needle Included
Needle Length No Needle Included
Fluid Path Buna-N, Nickel plated brass, PTFE, Silicone, Acrylic
Autoclavable No
Gas Sterilizable Yes
Pressure 30 psig (2.1 bar)
Maximum Temperature 80°C / 176°F
Minimum Temperature 0°C / 32°F
Barrel Inner Diameter 3.44 inches (87.4 mm)
Barrel Outer Diameter 3.95 inches (100 mm)
Std Needle Dead Volume N/A
Sales Quantity 1 syringe per pack
