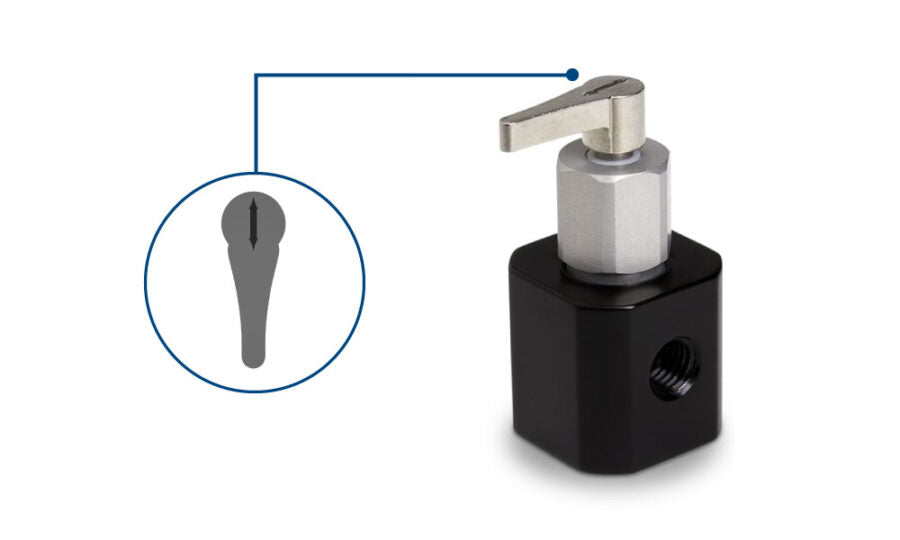

Manual Valve, PTFE/CTFE 180° Flow Path, 2-ports, HV (1-1)
Please Login or Register to see price.Shipping calculated at checkout.
SKU: 86725
Valve Model: 1-1
Valve Model Description: 180° Flow Path 2-ports
Fluid Path: PTFE/CTFE
Valve Size: HV
Nominal Port Diameter: 0.059 inch (1.5 mm)
Valve Outer Body Dimension: 0.75 inch (19.1 mm)
Housing Material: Aluminum
Total Dead Volume: 14 µL
Actuated: Manual
Break Away Torque: 15 oz-in (105.9 mNm)
Panel Mounting: No
Thread Depth: 0.219 inch (5.6 mm)
Threaded Connection: ¼-28
Operating Temp High: 38 °C (100 °F)
Operating Temp Low: -12 °C (10 °F)
Operating Pressure: 0 to 100 psig (0 to 6.9 bar)
Storage Temp High: 38 °C (100 °F)
Storage Temp Low: -18 °C (0 °F)
