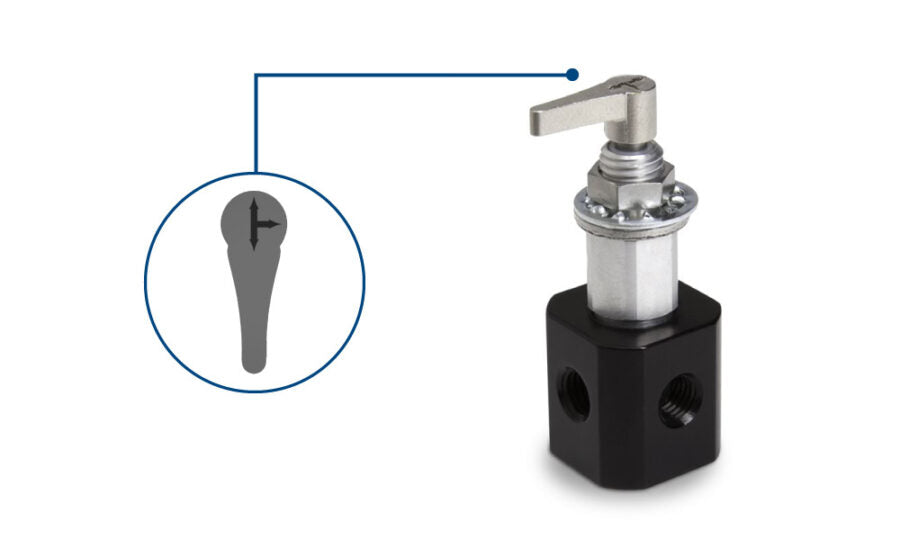

The HVP valve is essentially the same as the HV valve except the HVP can be mounted into panels allowing for custom installation into control panels or instruments.
Hamilton (HV) Plug Valves provide an economical and flexible method of custom-building a fluid flow control system, from a simple on/off valve to a more complex multi-valve arrangement, using a combination of loop and distribution valves. The small valve body with its chemically inert PTFE/CTFE flow path is ideally suited for low pressure (100 psi) applications.
All HV Plug Valves allow you to select and interchange a wide variety of fittings, adapters and tubing, including male and female luers, FEP tubing assemblies, and adapters which thread directly into the valve providing an endless variety of valve configurations for any flow application.
Flow valves are used to direct or redirect fluids. 2-, 3-, and 4 -port valves are available with straight through (180°), 90°, or “T” type plugs for seven different valves. All seven flow configurations are available as HV, HVP and HVX valves. The flow configuration drawings show the possible fluid flow paths for a three port flow valve with a “T” type plug.
• Wetted paths are chemically inert TEFLON® and Kel-F® materials (100 psig or less)
• Valves are for stand alone use or HVX and HVP valves can also be panel mounted
• Valve position is controlled manually via a handle attached to the valve stem
• Valve connections are via 1/4-28 UNF-2B (Unified Fine) fittings
|Valve Model Description||"T" Flow Path 3-ports|
|Nominal Port Diameter||0.059 inch (1.5 mm)|
|Valve Outer Body Dimension||0.75 inch (19.1 mm)|
|Total Dead Volume||21 µL|
|Break Away Torque||15 oz-in (105.9 mNm)|
|Panel Thickness||0.150 inch (3.8 mm)|
|Thread Depth||0.219 inch (5.6 mm)|
|Operating Temp High||38 °C (100 °F)|
|Operating Temp Low||-12 °C (10 °F)|
|Operating Pressure||0 to 100 psig (0 to 6.9 bar)|
|Storage Temp High||38 °C (100 °F)|
|Storage Temp Low||-18 °C (0 °F)|
